Churn_Prediction_MLOPS

ML Model Deployment on AWS for Customer Churn Prediction

Objective

To deploy a model on AWS which predicts whether the customer is going to churn in the near future or not. Check here to understand how the ML model is created.

Tech Stack

➔ Language: Python

➔ Libraries: Flask, gunicorn

➔ Services: Flask, Docker, AWS, Gunicorn

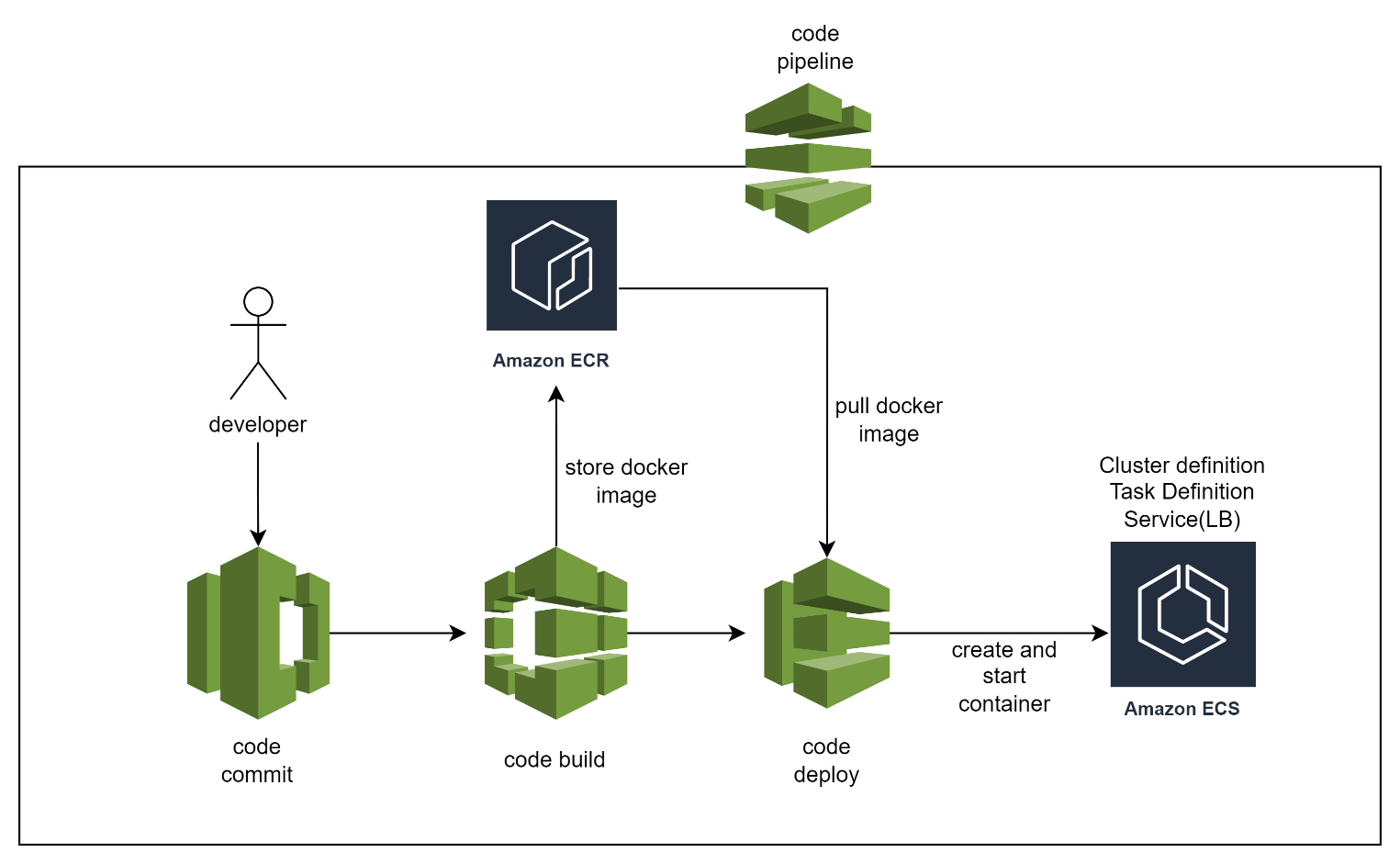

AWS Services

AWS s3
Aws ECR
AWS ECS
AWS EC2 Load balancer
AWS Code commit
AWS Code Build
AWS Code Deploy
AWS Code Pipeline

Step - 1

Step - 2

Step - 3

1. Create Flask Application

Save all the custom transformer classes – We have created transformer classes for categorical encoding, adding features and custom scaler. To do all the transformation of the test dataset we need to save these classes. It is saved under ML_Pipiline folder. https://github.com/AkashSDE/ChurnPrediction/tree/main/FlaskApplication/src/ML_Pipeline

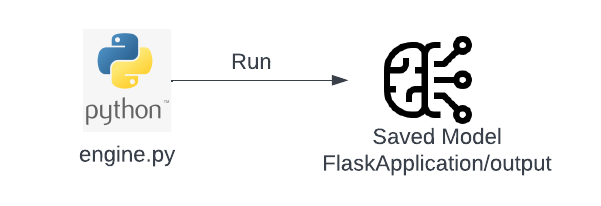

Run engine.py https://github.com/AkashSDE/ChurnPrediction/blob/main/FlaskApplication/src/Engine.py file which will take the training dataset and train the best model with best configuration. It will the save the model in the output folder https://github.com/AkashSDE/ChurnPrediction/tree/main/FlaskApplication/output

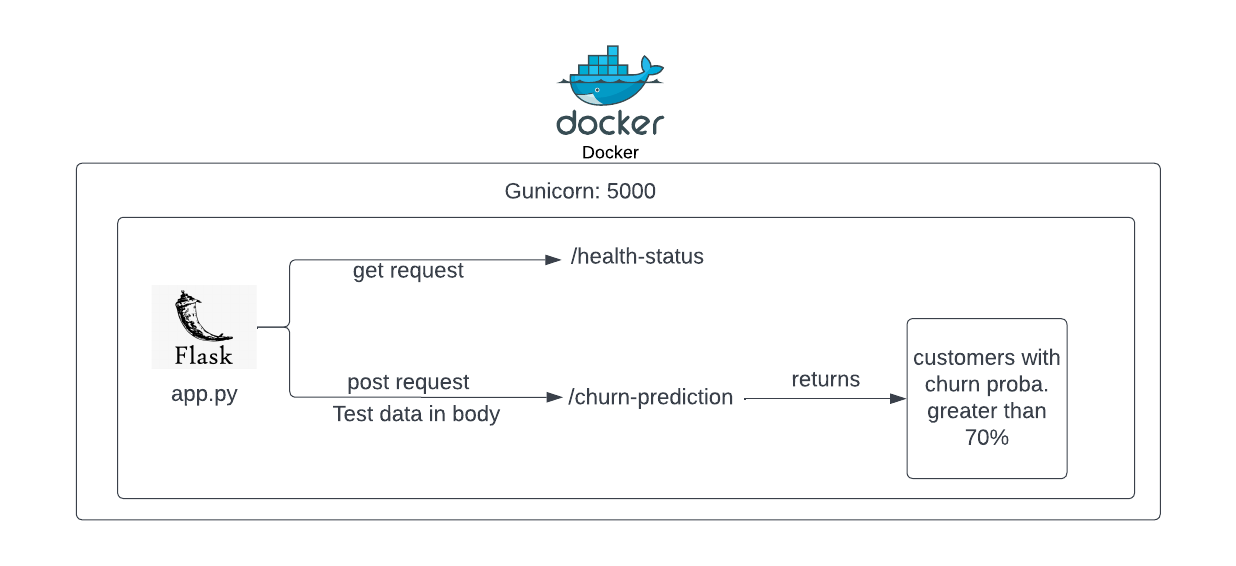

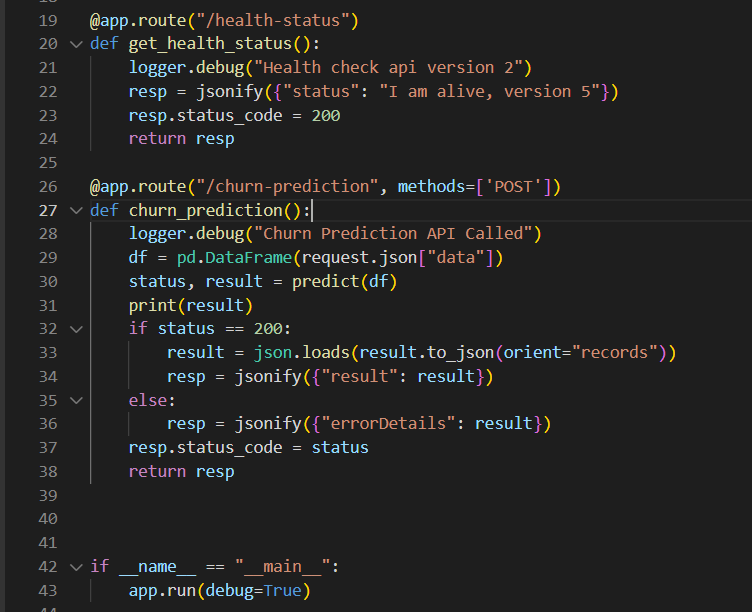

Create app.py https://github.com/AkashSDE/ChurnPrediction/blob/main/FlaskApplication/src/app.py file which is the flask application with two routes /health-status and /churn-prediction. Exposed port is 5000.

predictor.py – load the saved model, calculate the prediction, and return the results

https://github.com/AkashSDE/ChurnPrediction/blob/main/FlaskApplication/src/predictor.py

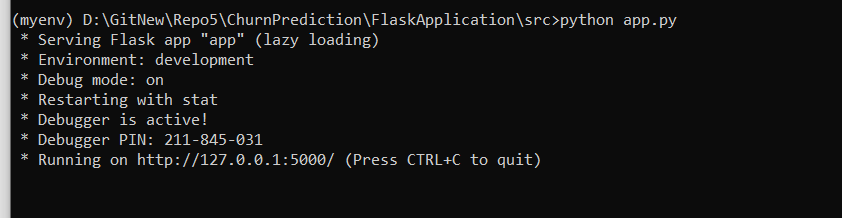

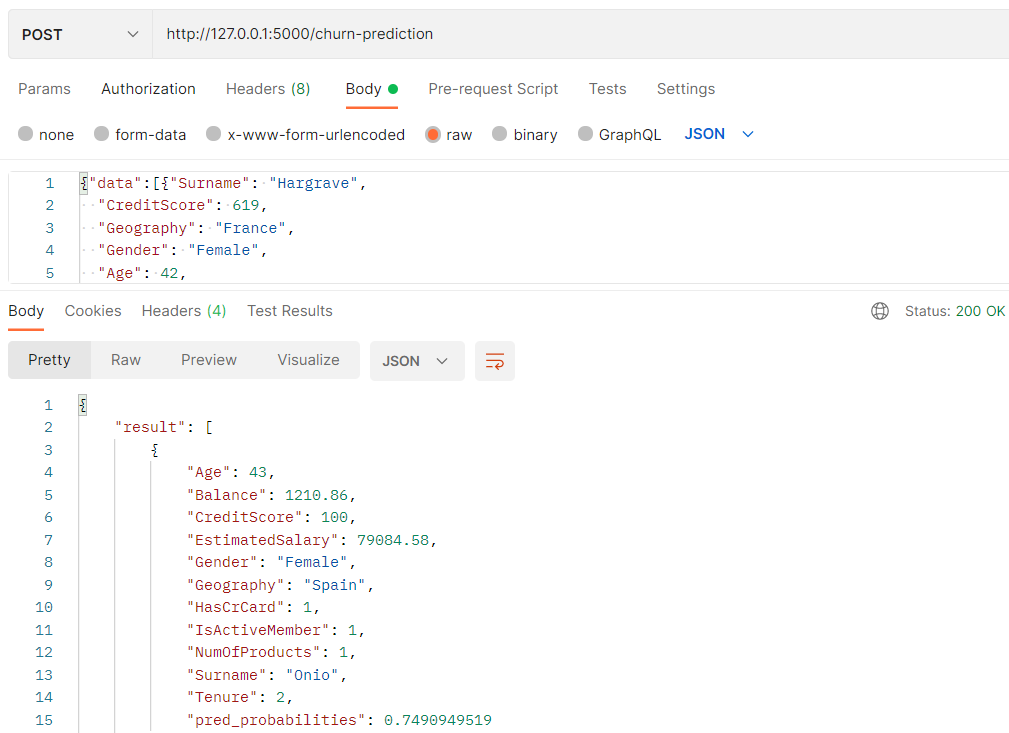

Run the flask application and verify the two routes using postman.

Json data {"data":[{"Surname": "Hargrave", "CreditScore": 619, "Geography": "France", "Gender": "Female", "Age": 42, "Tenure": 2, "Balance": 0.0, "NumOfProducts": 1, "HasCrCard": 1, "IsActiveMember": 1, "EstimatedSalary": 101348.88}, {"Surname": "Onio", "CreditScore": 100, "Geography": "Spain", "Gender": "Female", "Age": 43, "Tenure": 2, "Balance": 1210.86, "NumOfProducts": 1, "HasCrCard": 1, "IsActiveMember": 1, "EstimatedSalary": 79084.58} ] }

2. Dockerize the Flask application – Test before deploying to AWS

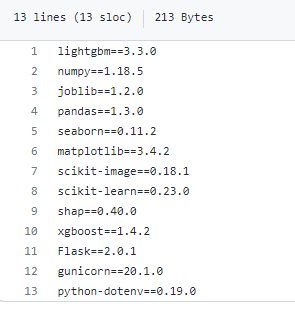

Create the list of libraries along with the version and save it as requirement.txt https://github.com/AkashSDE/ChurnPrediction/blob/main/FlaskApplication/requirements.txt

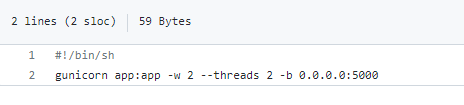

Create gunicorn.sh https://github.com/AkashSDE/ChurnPrediction/blob/main/FlaskApplication/src/gunicorn.sh file to configure the flask application with WSGI sever as Flask application should not be run directly in the production server

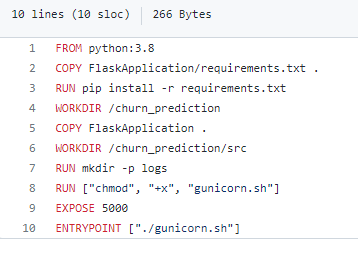

Create docker file - https://github.com/AkashSDE/ChurnPrediction/blob/main/Dockerfile

Build docker image and test the two routes again using postman client tool
Go to the folder where u kept the docker file and run the below command

$ docker build -t churn-application .
This will create an image churn-application check using docker images command
Run the below command to start the container

$ Docker run -it -p 5000:5000 churn-application
Go to postman client and test the two end points
3. Create Code Commit Repo in AWS

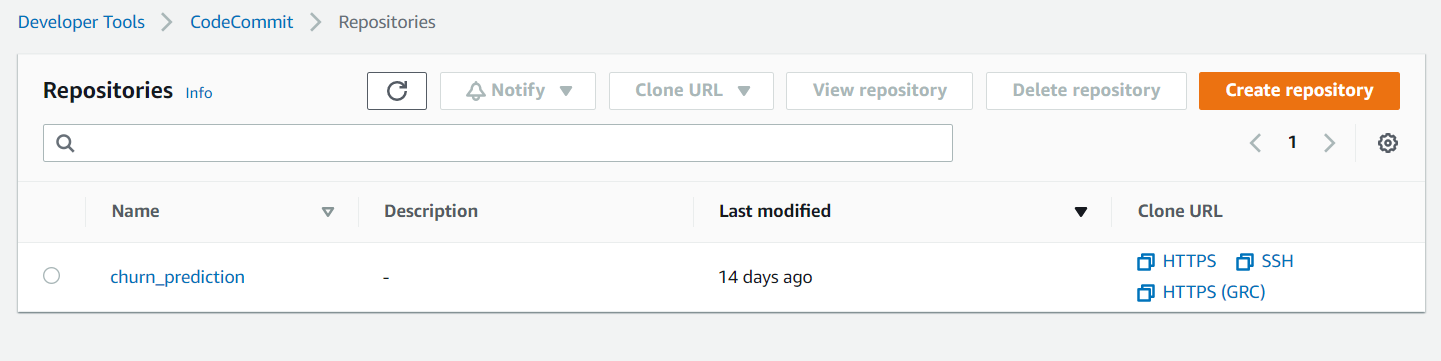

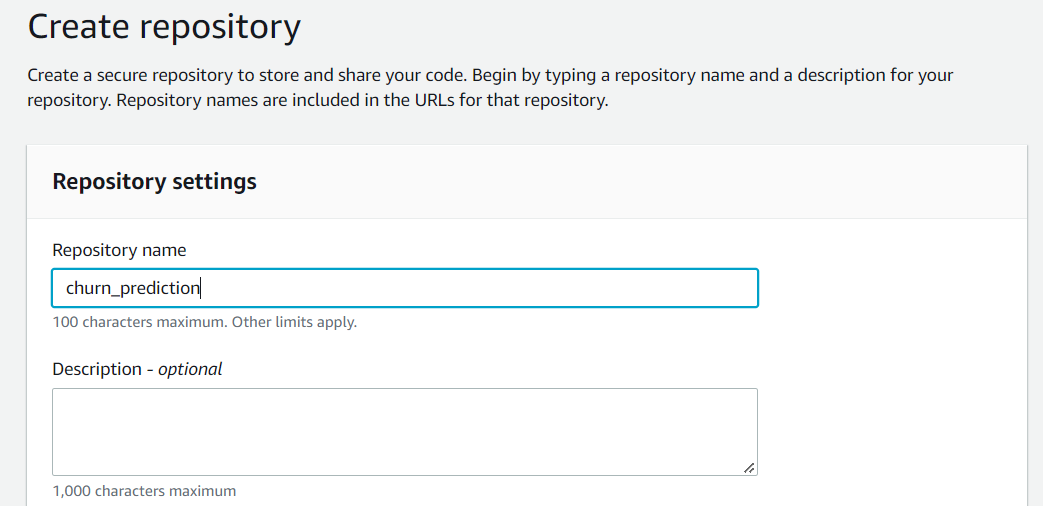

Create Code commit repository with name – churn_prediction

The repository we created is a private repository. To connect with this repository, we need to create credentials.

Go to IAM service click user select user select Security Credentials tab

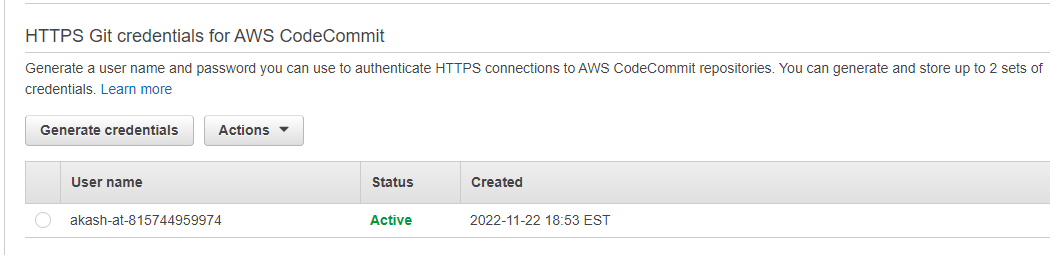

Scroll down to HTTPS Git credentials for AWS CodeCommit and click on generate credentials

Create new credentials and download the credentials – get username and password in the csv file

Clone the repository in local

Copy the HTTPS URL

In the local CLI run the below command

$ git clone <URL>

it will ask for username and password which you can get from csv file which is downloaded in step b.

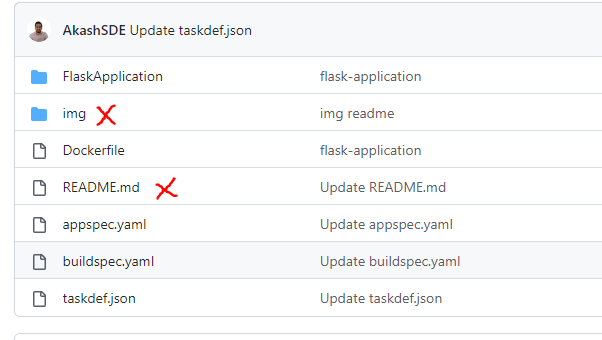

Copy all the files and folder (exclude img folder and Readme file) from the below url to your local repository folder

https://github.com/AkashSDE/ChurnPrediction

Do git commit and git push to the aws code repository
Create testbranch and push all the changes to test branch as well

We will use this testbranch to deploy and create pipeline

4. AWS Code build project creation

Go to AWS console and search for code build projects click on create build projects

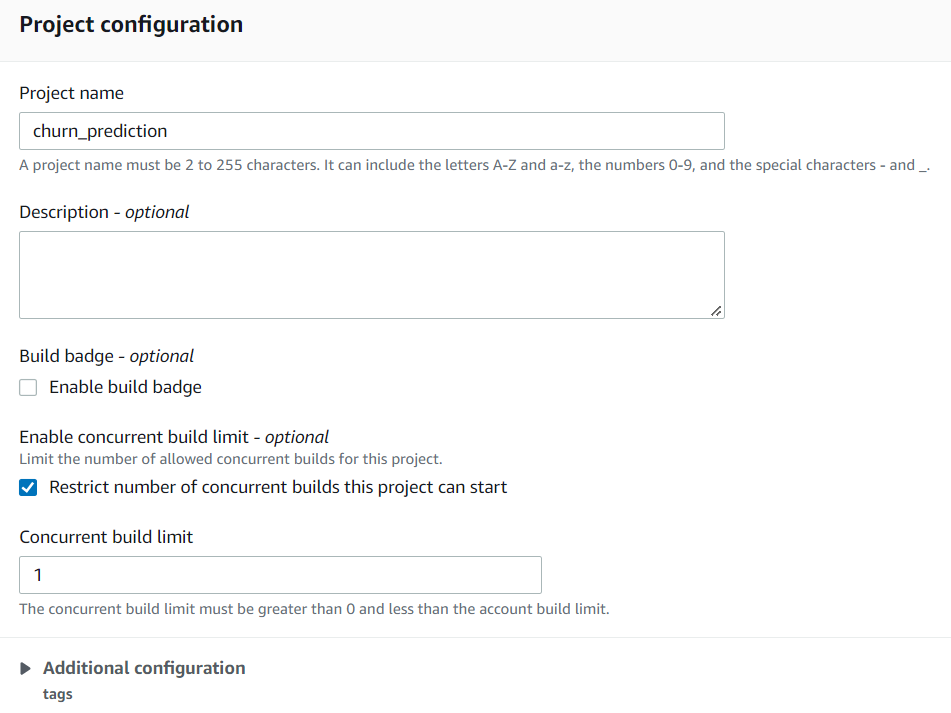

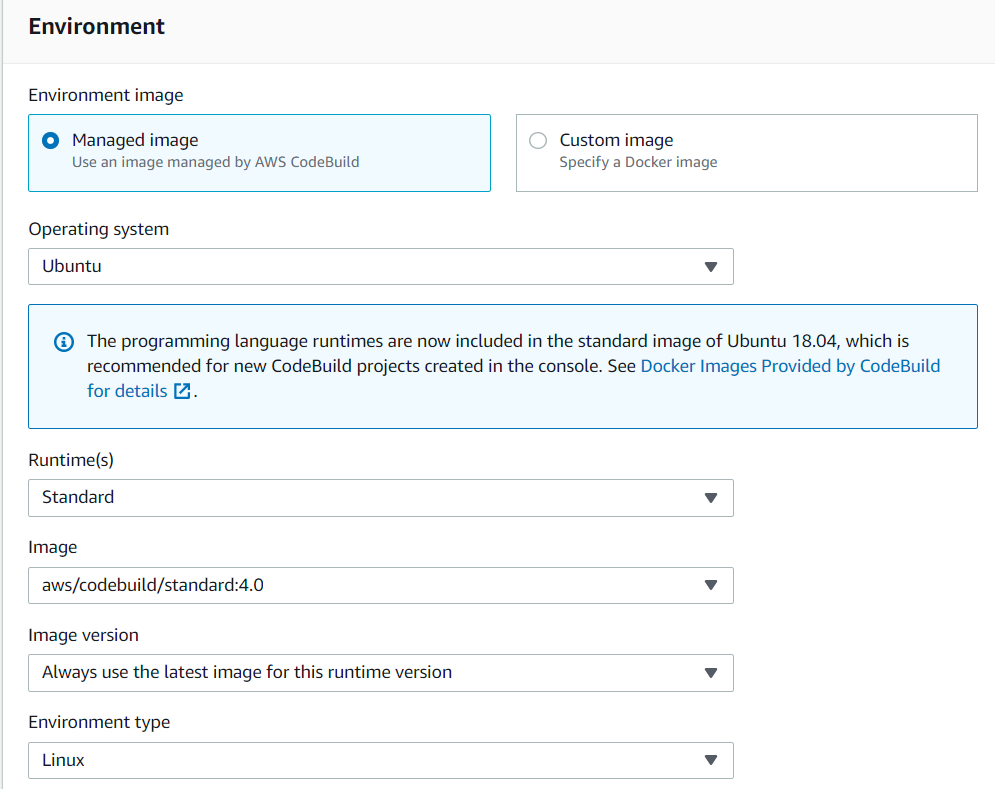

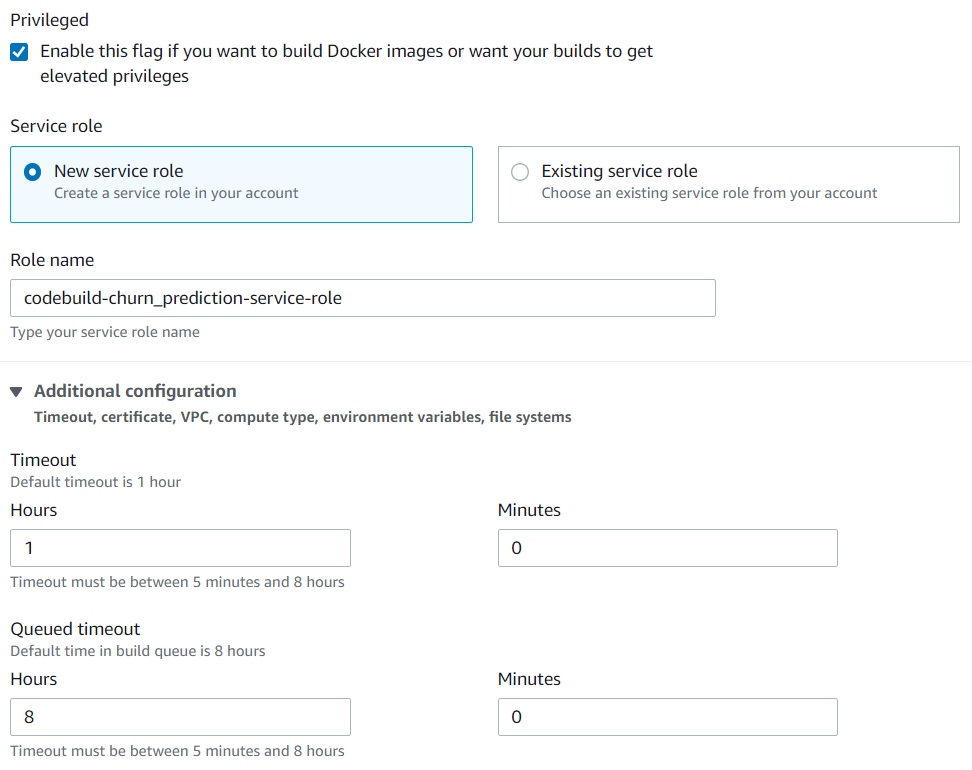

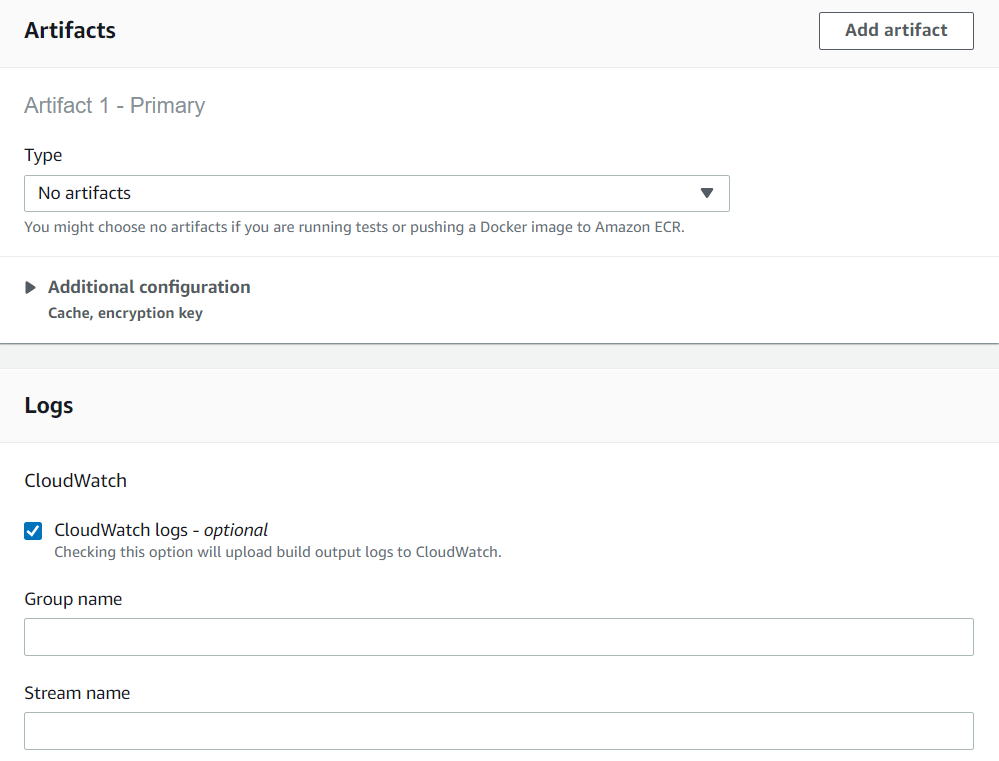

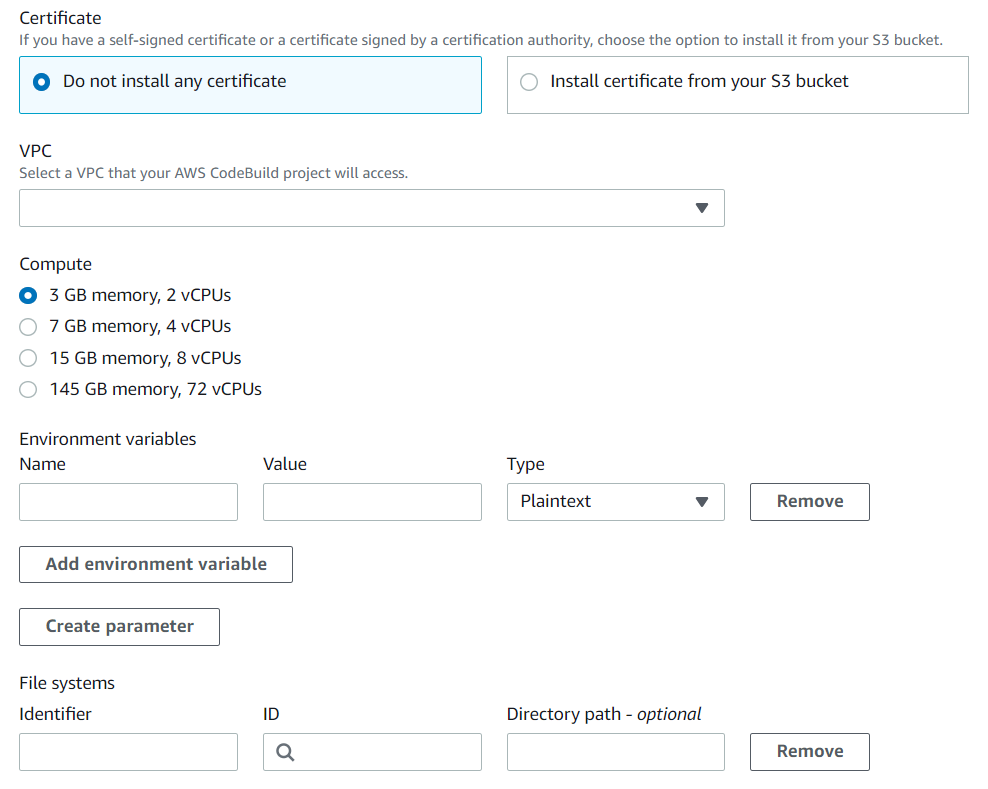

Provide the below configuration

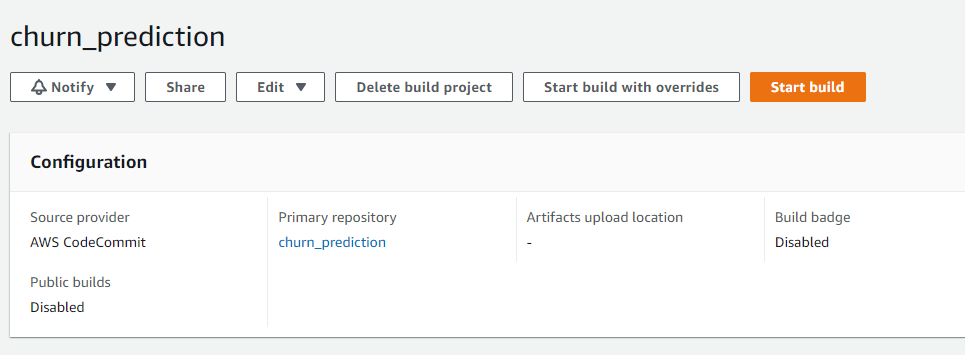

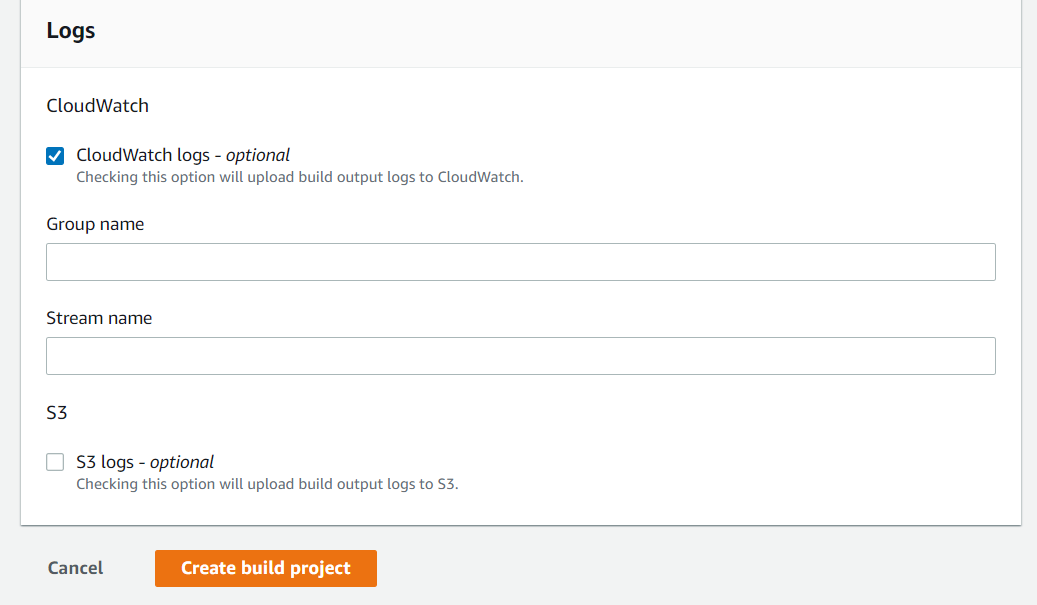

Click on create build project

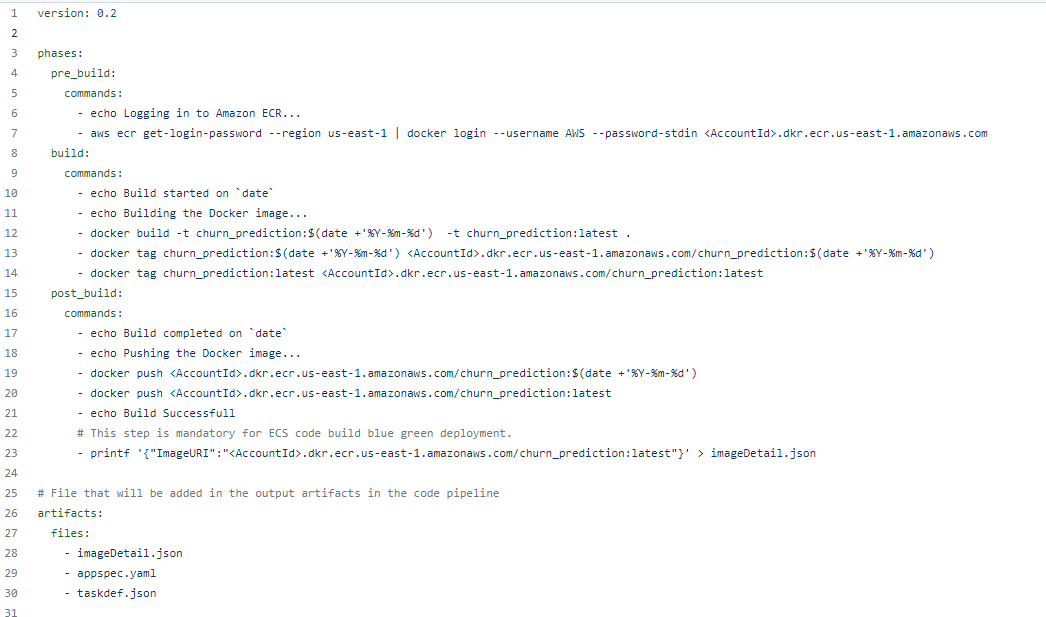

Create buildspec.yaml file

This yaml file contains steps to be done for building the docker image and then pushing the docker image to ecr repository

https://github.com/AkashSDE/ChurnPrediction/blob/main/buildspec.yaml

replace AccountId with your AWS account ID

5. Create ECR repository

ECR repository is like docker hub which is used to store the docker image built at code build stage.

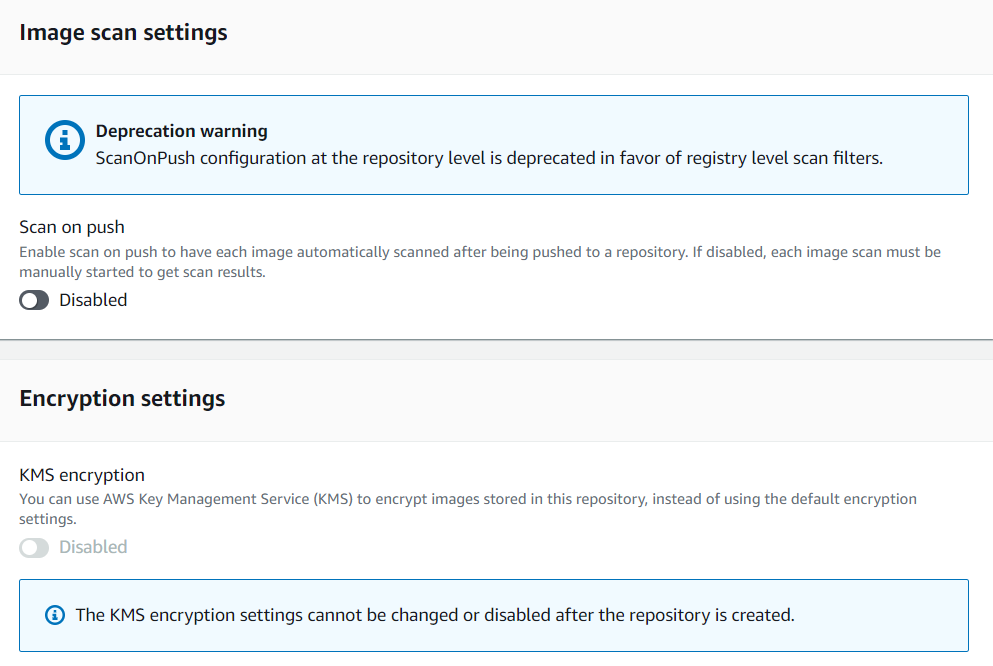

Search Elastic container repository in the aws console Click Create Repository and provide below configuration

Go to code build service and click on start build

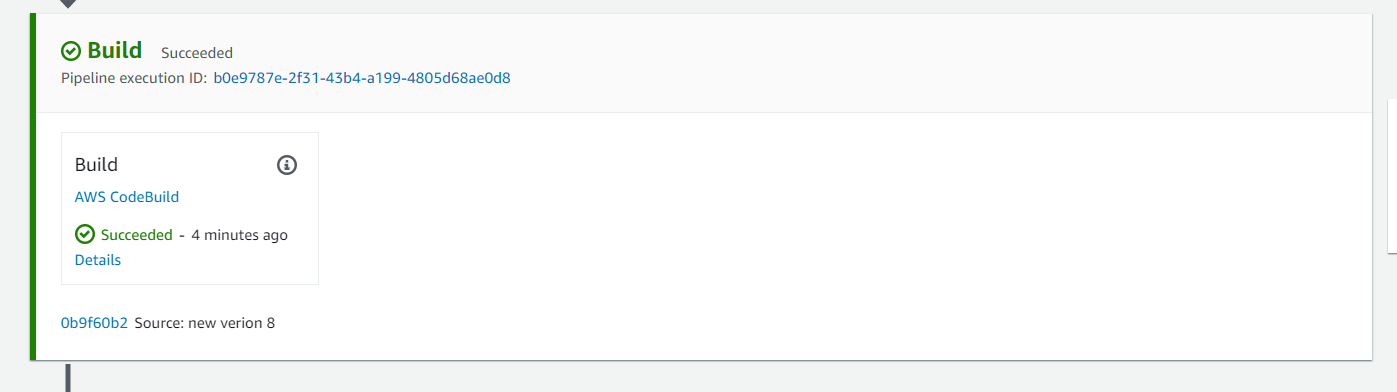

Click tail logs to see the progress

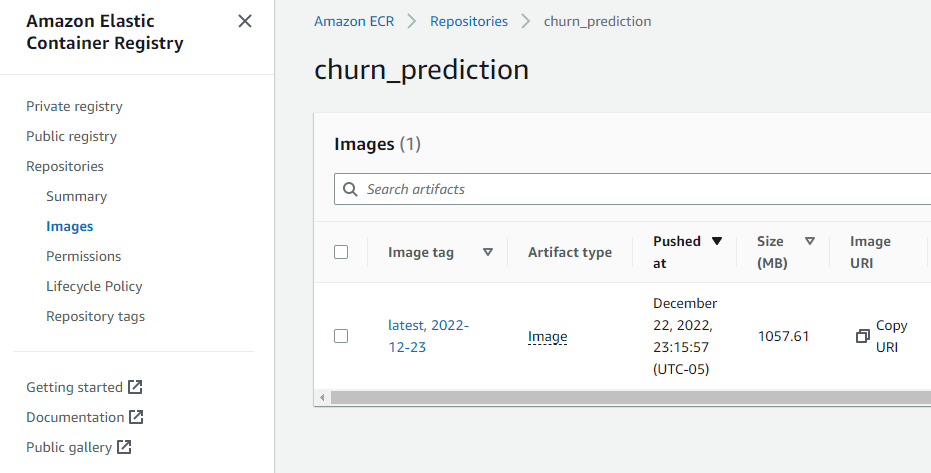

After build is successful, we can see the docker image got created inside ecr repository

6. ECS cluster Definition

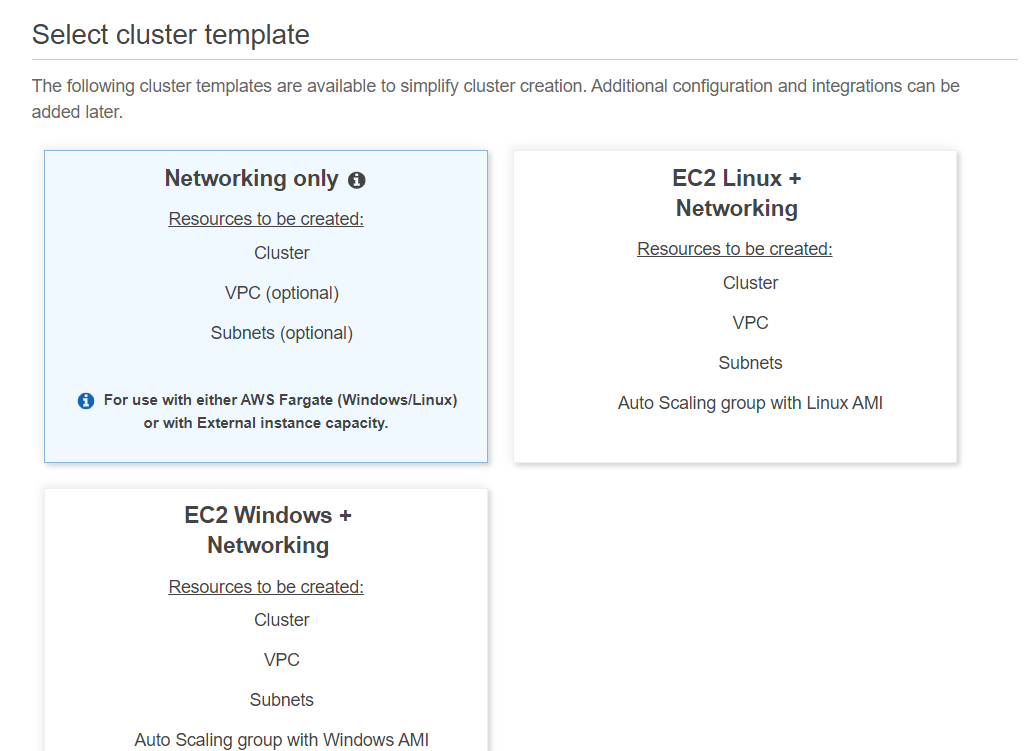

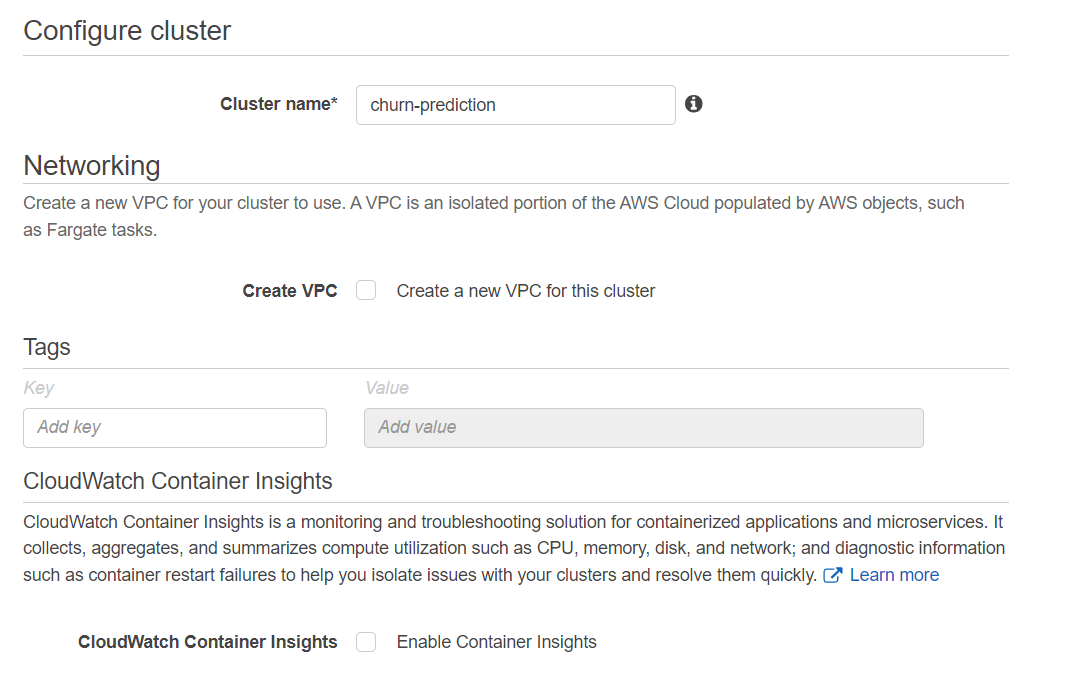

Search for elastic container service in aws console Click on Clusters in the left panel and then click on Create Cluster select cluster template Networking only provide cluster name as churn-cluster and click on create

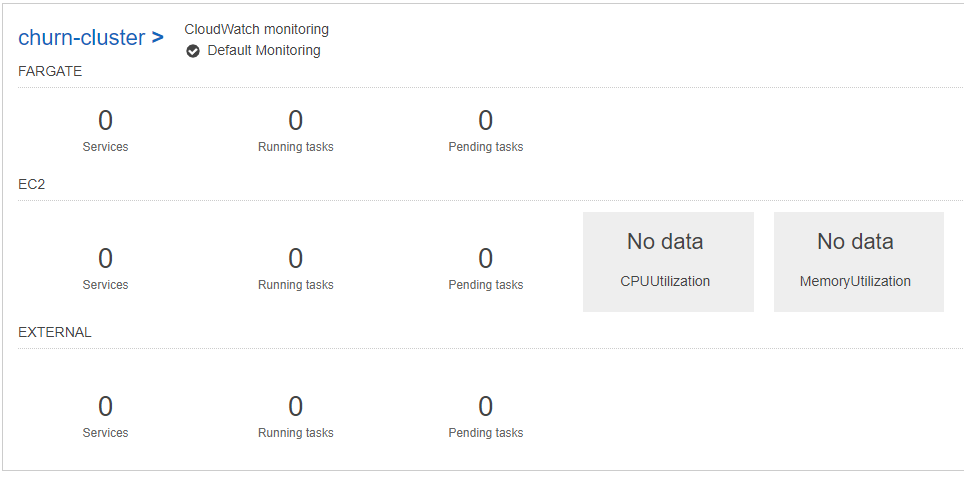

New cluster is created

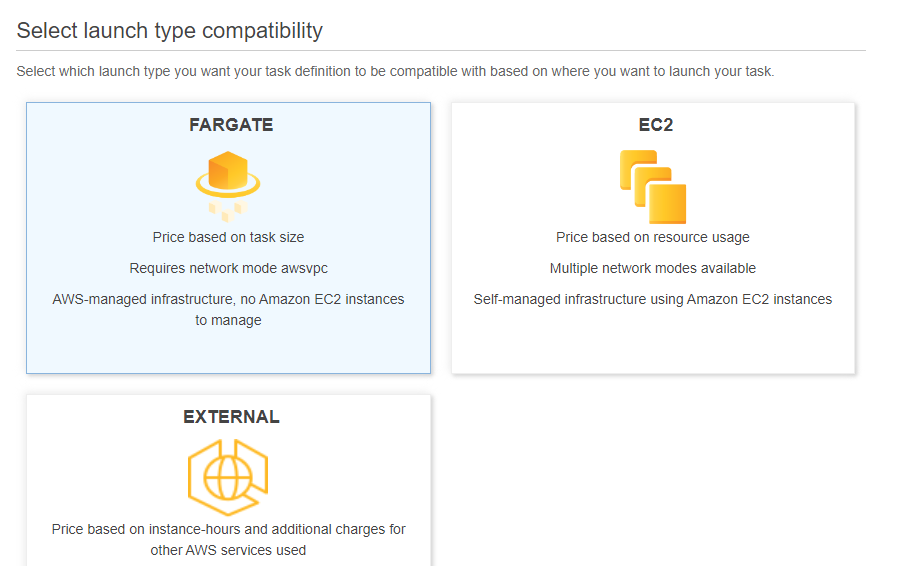

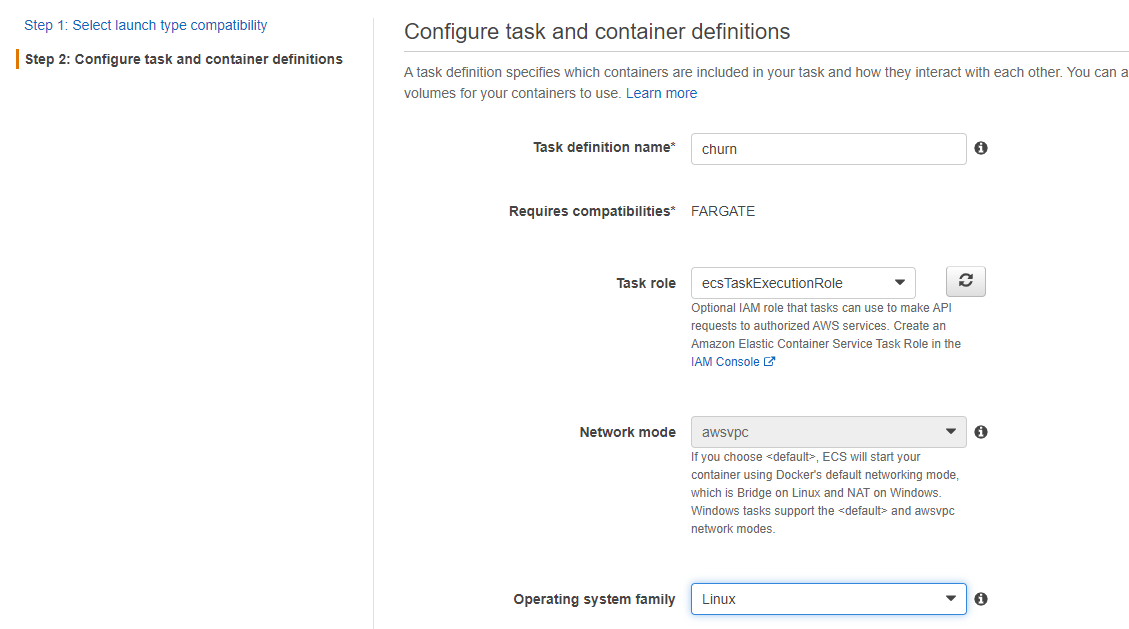

7. ECS Task definition

We need to create the task definition to run containers on the cluster that is created in the above steps.

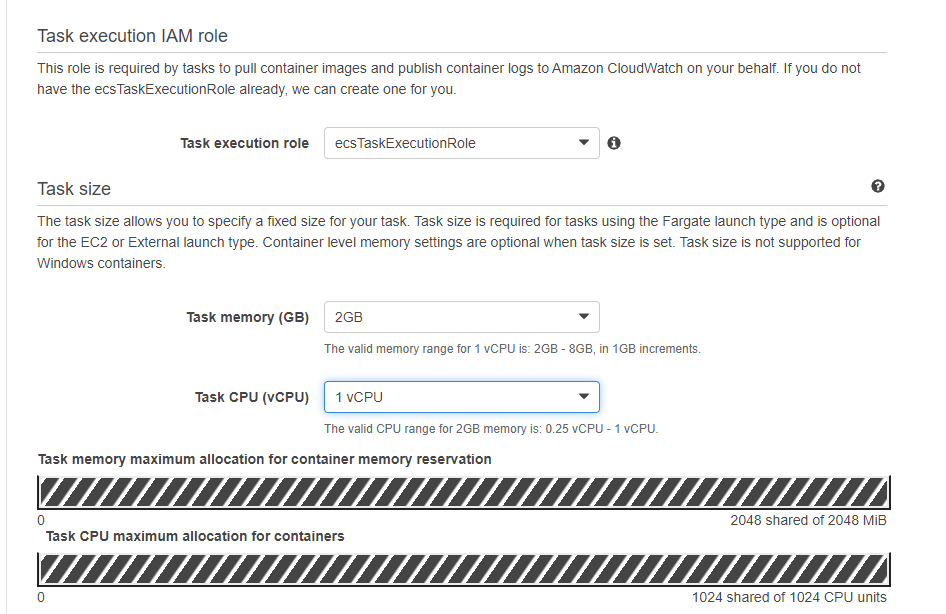

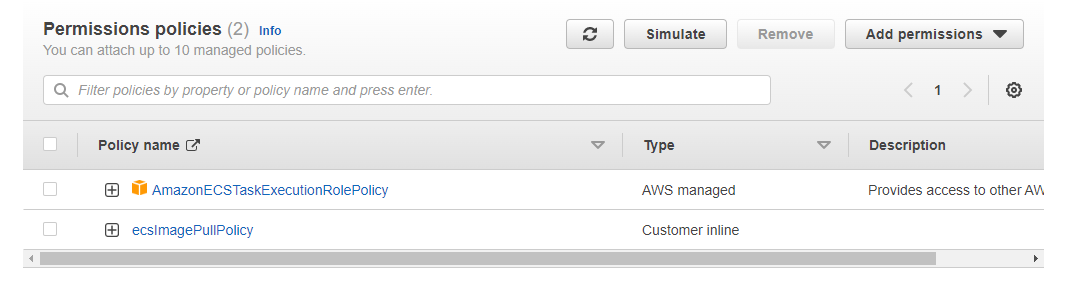

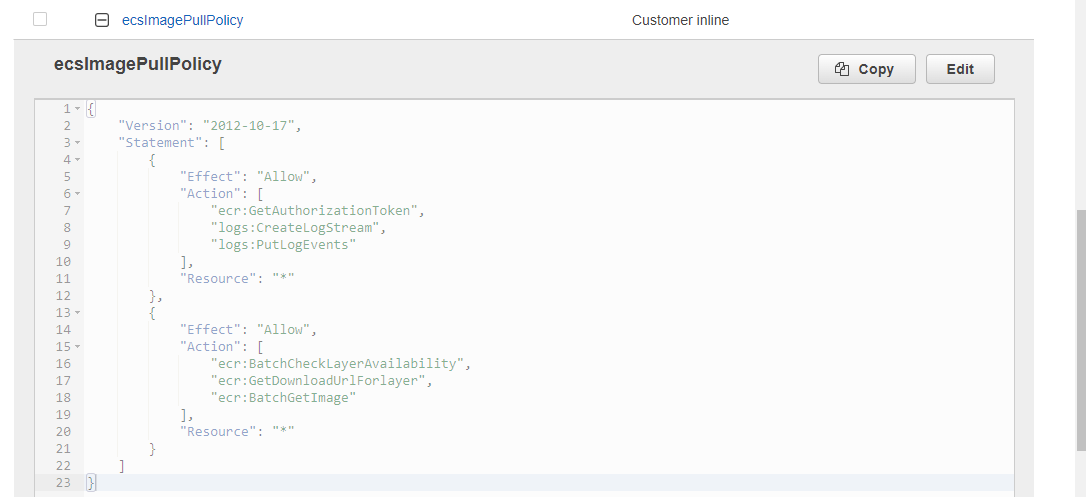

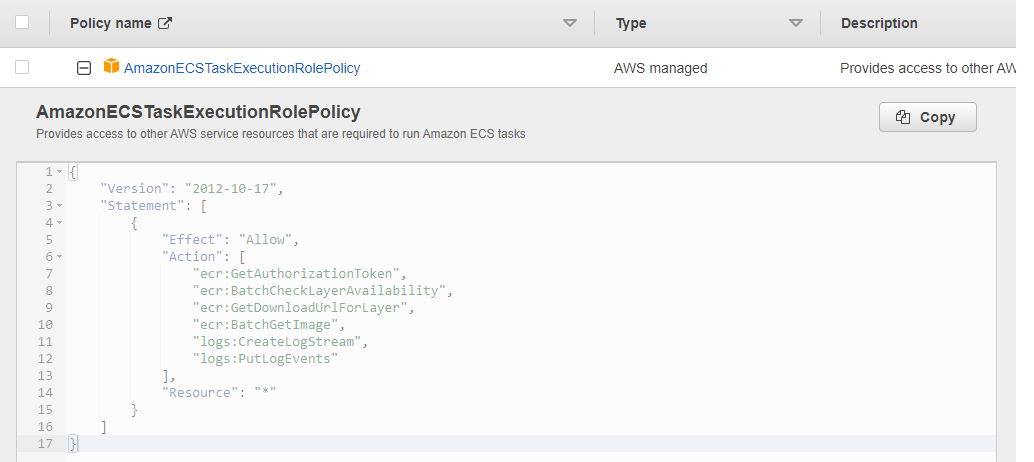

ecsTaskExecutionRole definition

Continue task definition

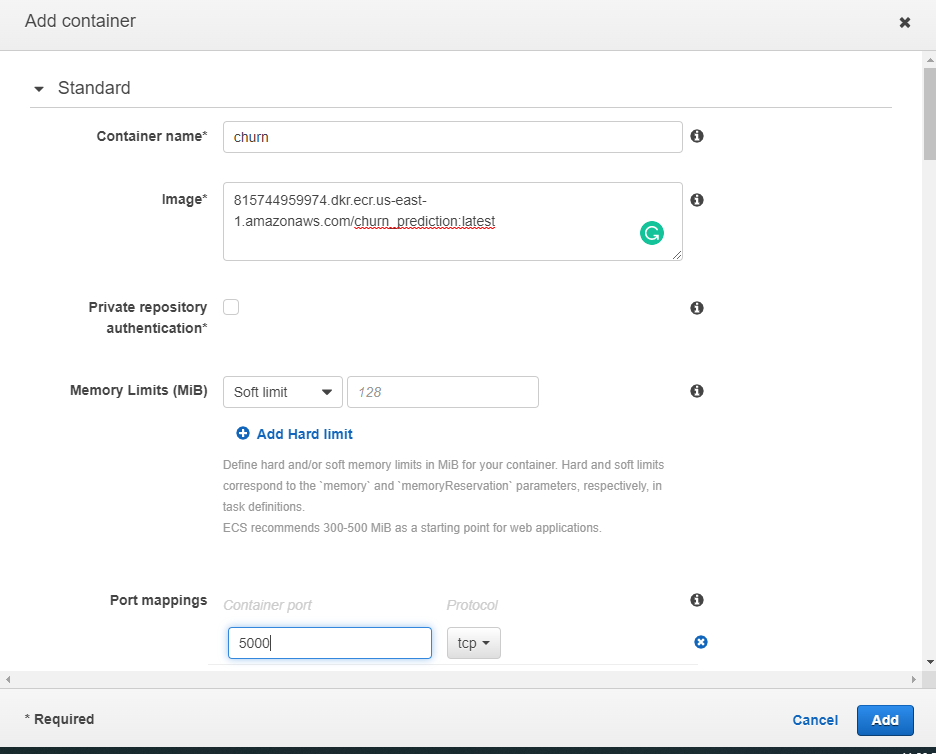

Click on add container

Leave other fields blank

Click on create

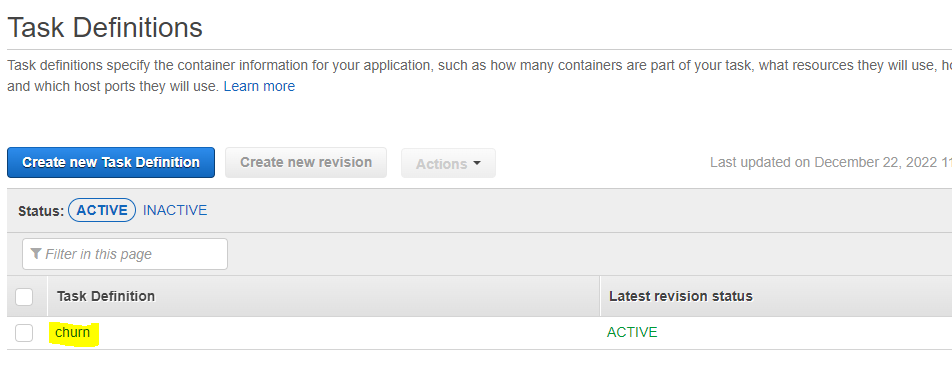

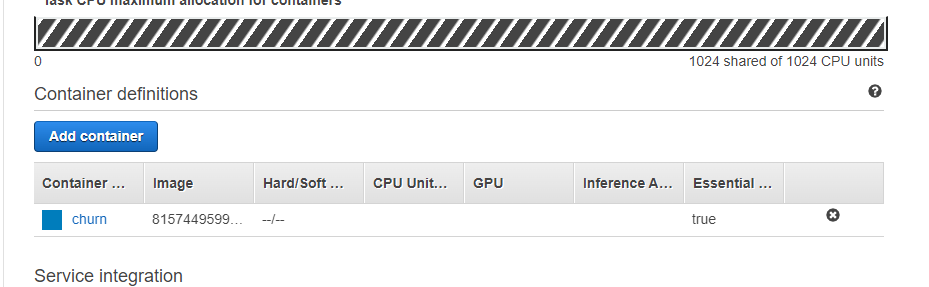

New Task definition churn is created

8. ECS service creation

Deploy Task definition into cluster

Create services which allow us to attach load balancer to container and we can access container client using load balancer.

We can create as many tasks as possible which is contains a container

First, we need to create load balancer then we can create Services in ECS

9. Create a Load balancer

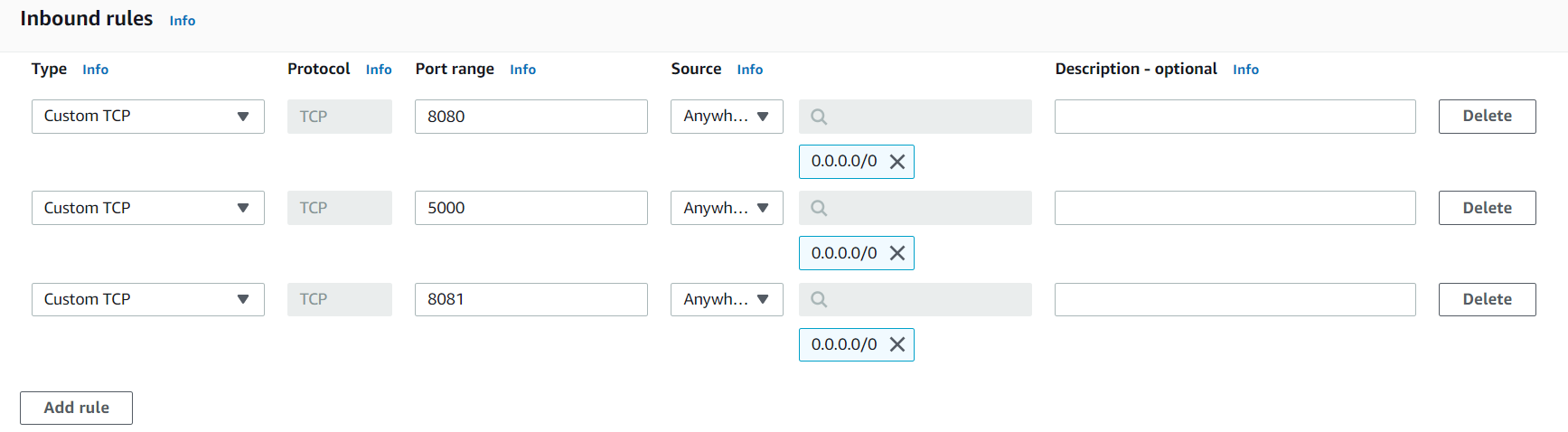

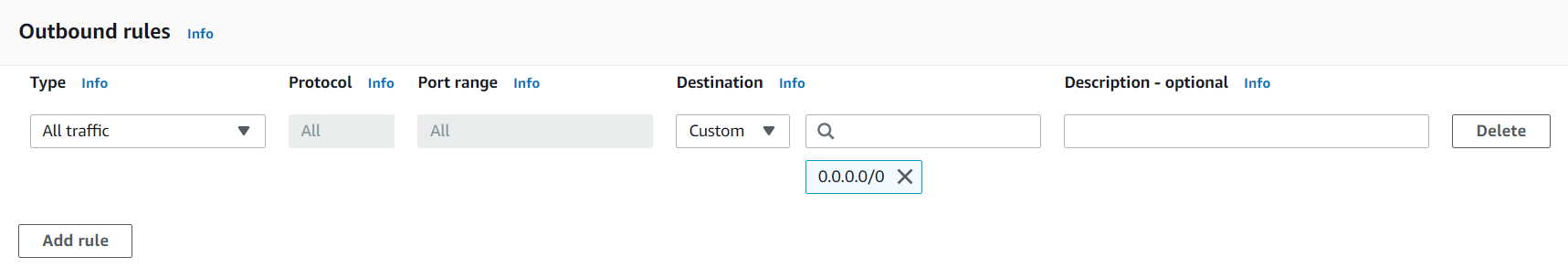

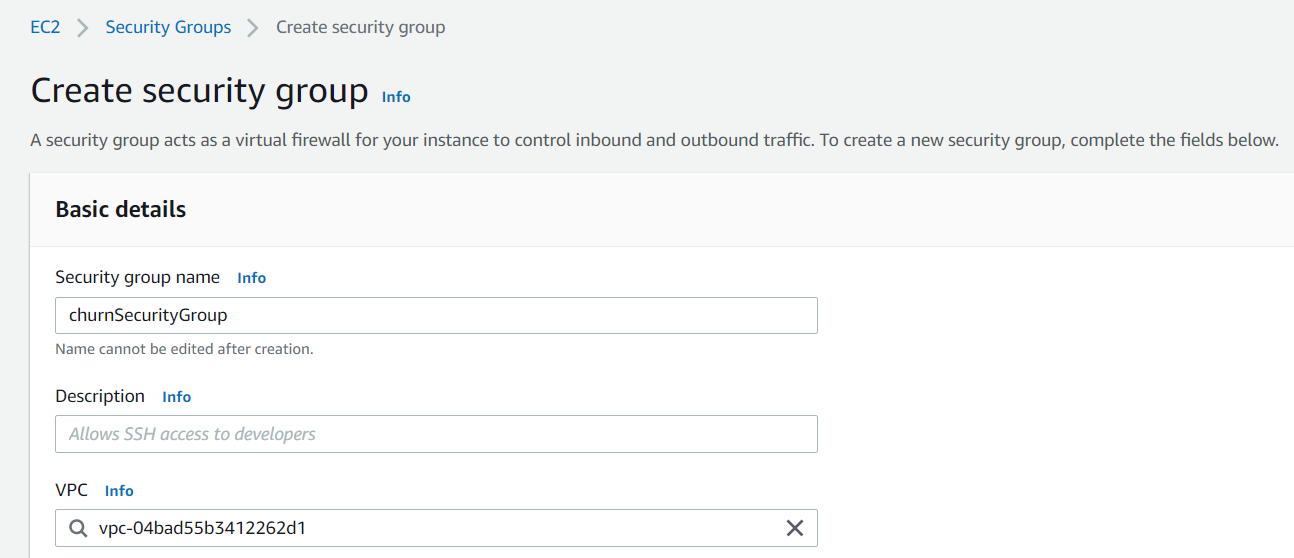

Create security group

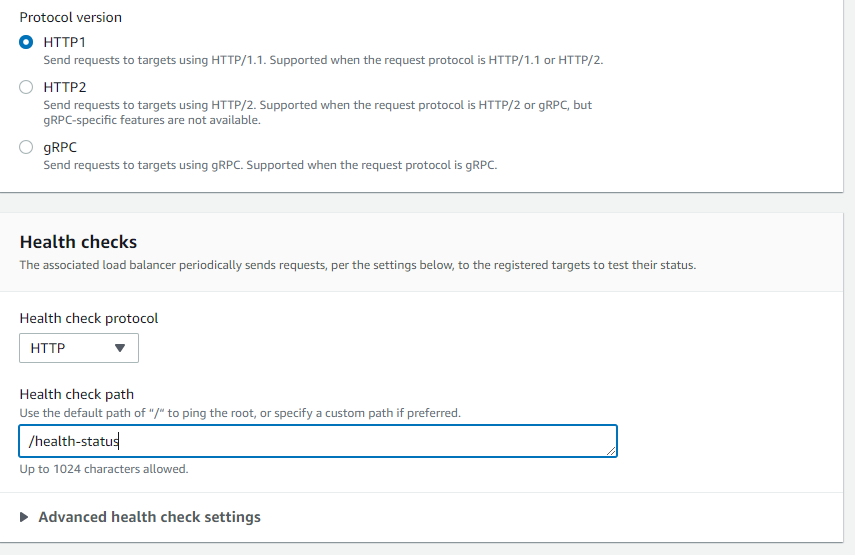

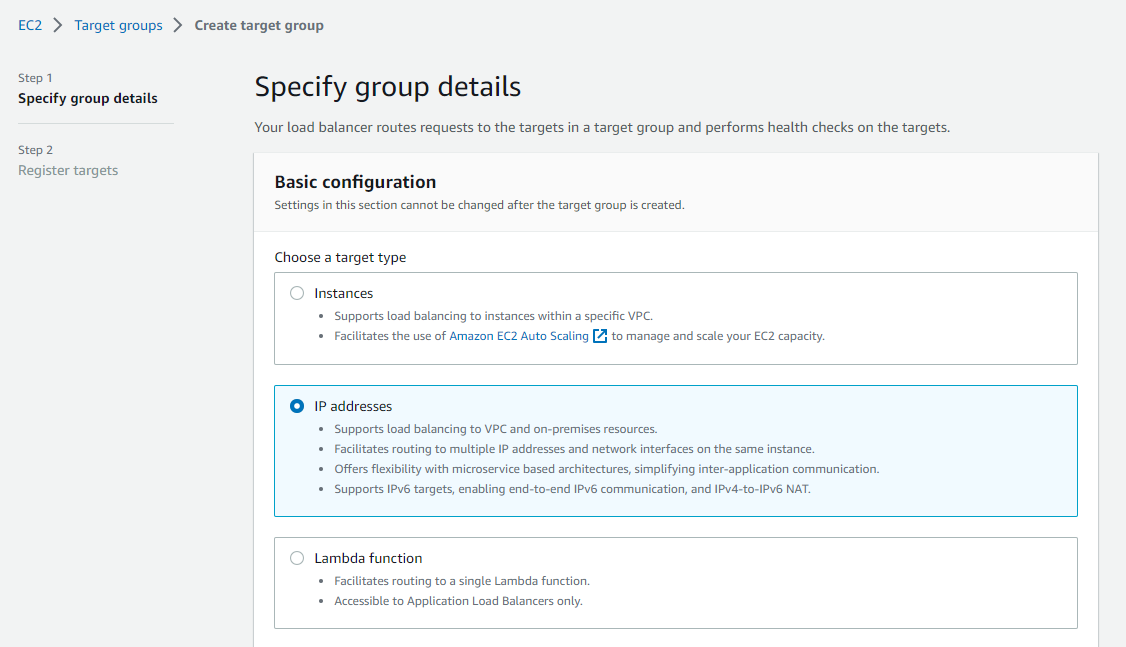

Create Target groups

Click next and click Create target group

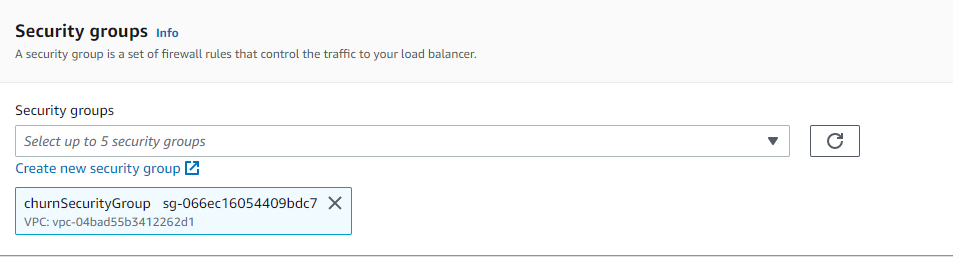

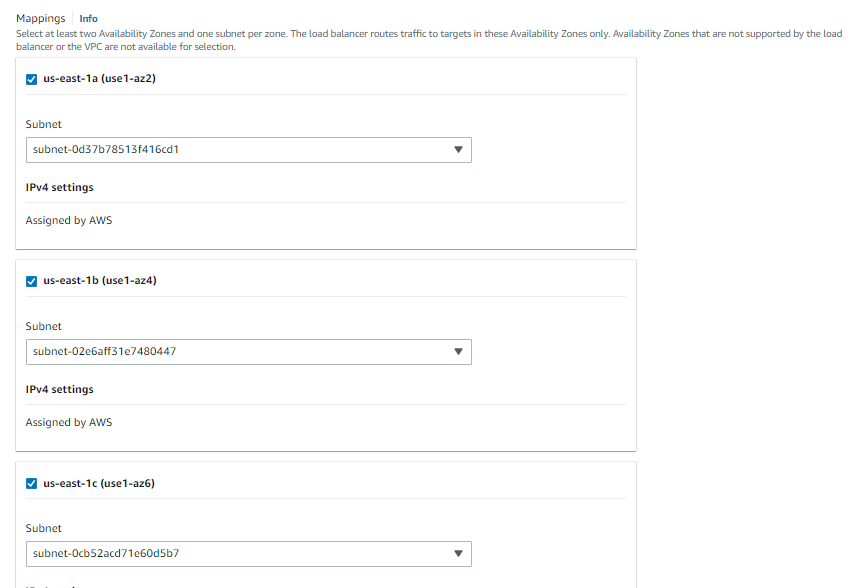

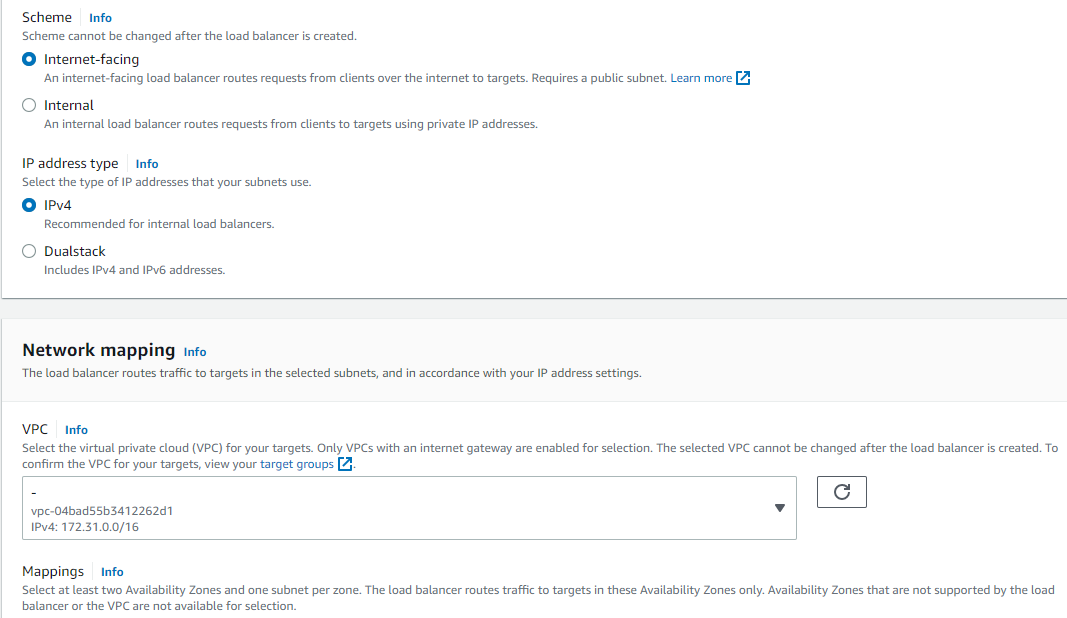

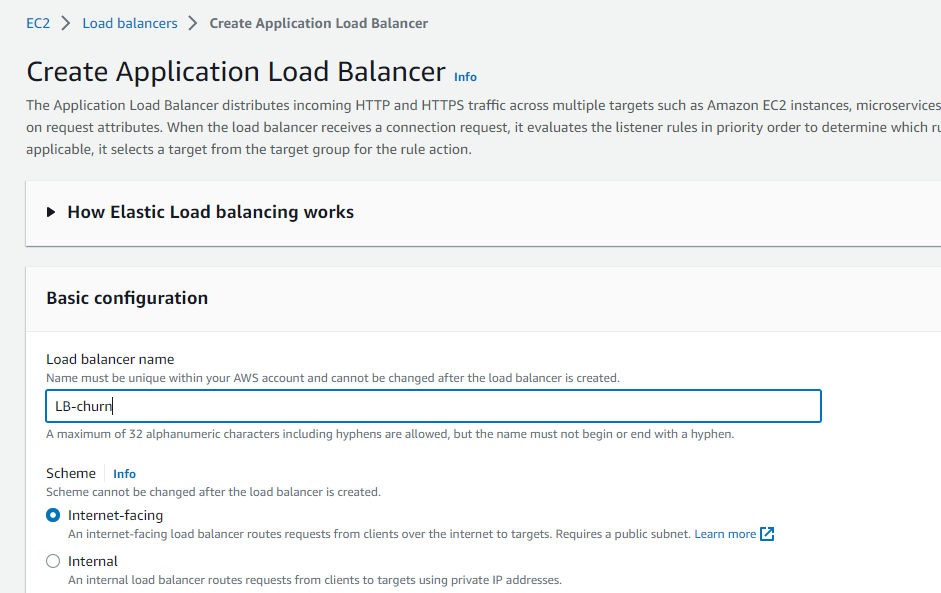

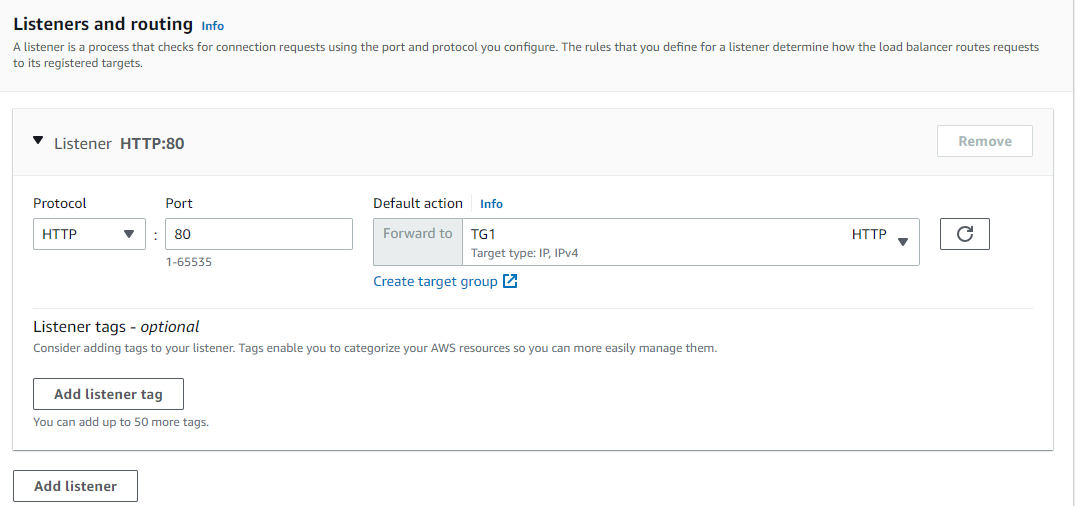

Create Load balancer

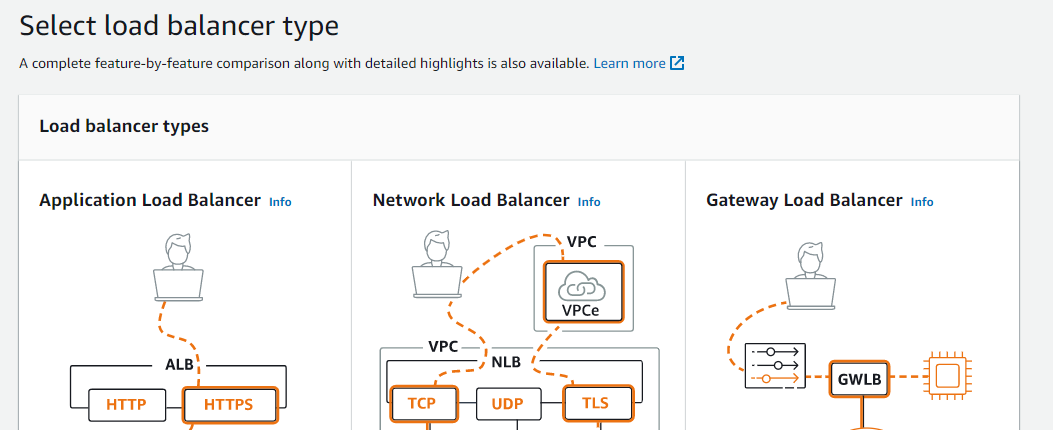

Select Application Load Balancer

Click on Create load balancer

Now go to aws console and search for ECS click on clusters

Click on churn-cluster select Services tab click on create

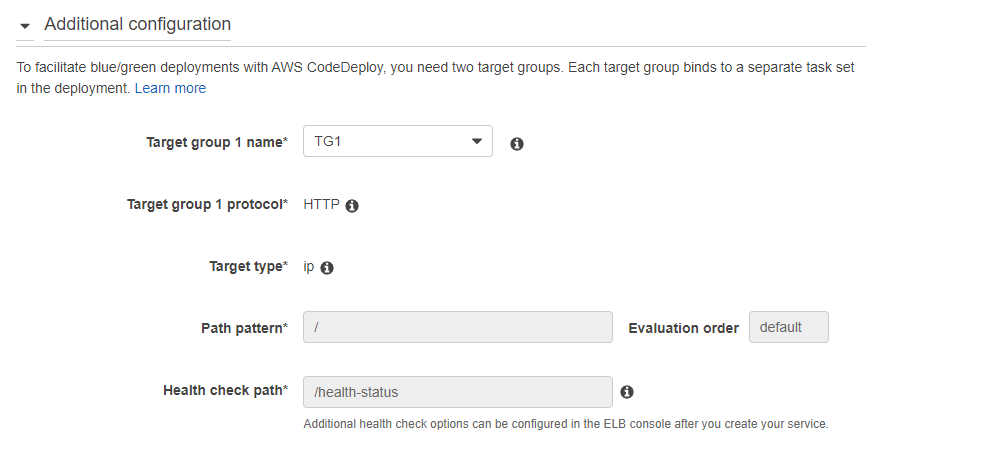

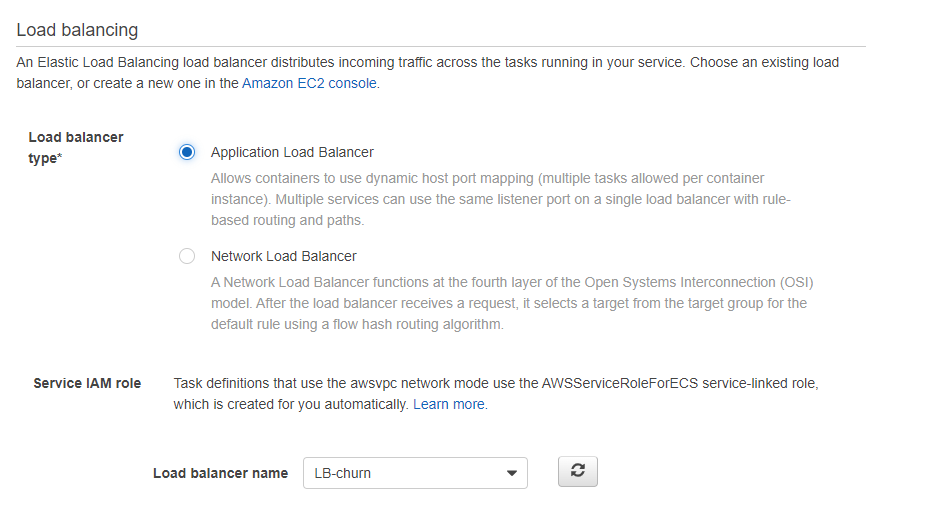

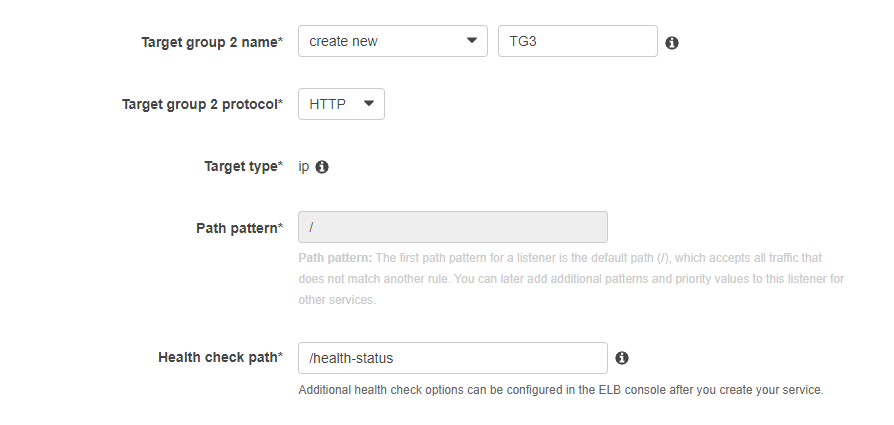

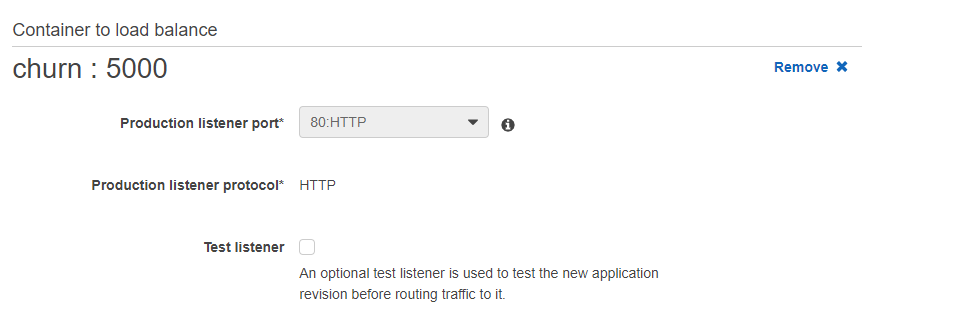

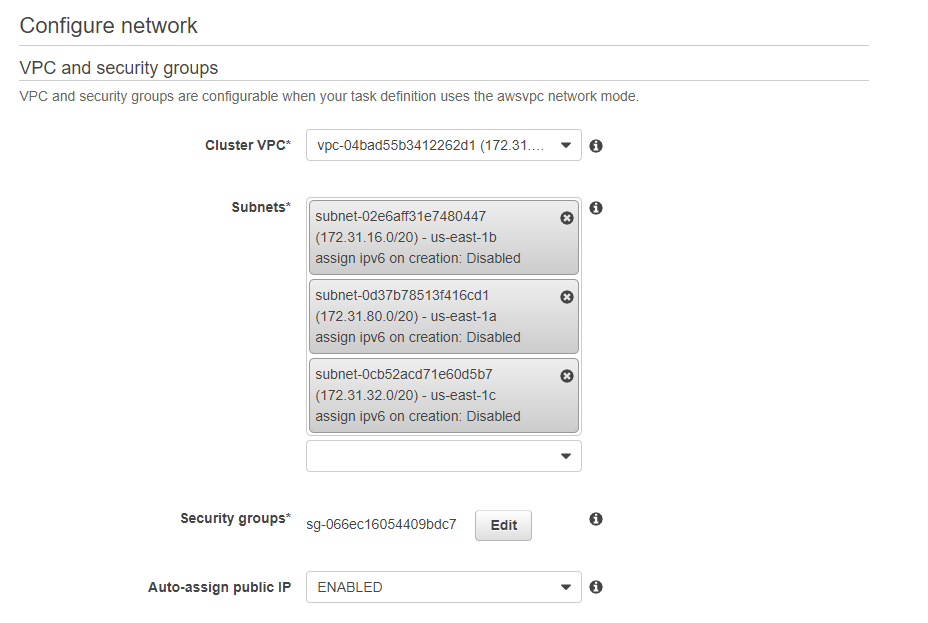

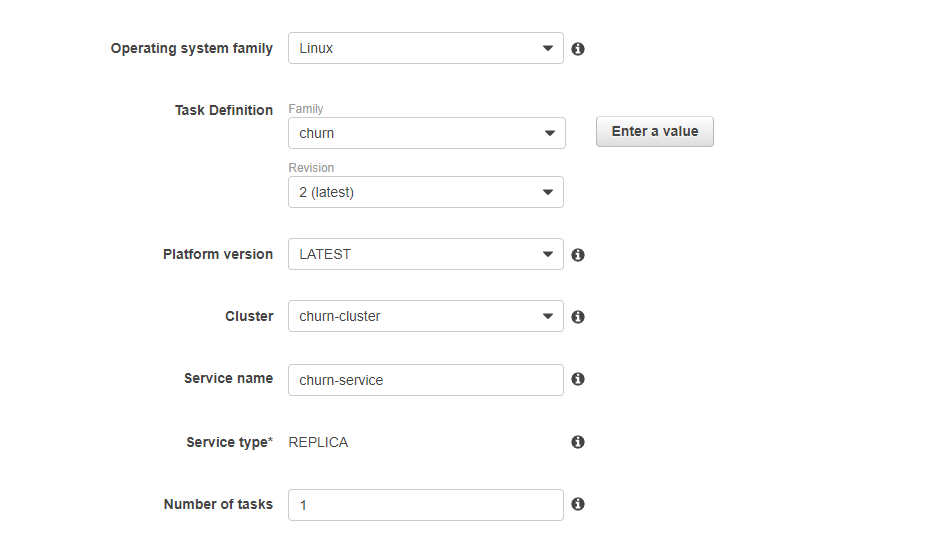

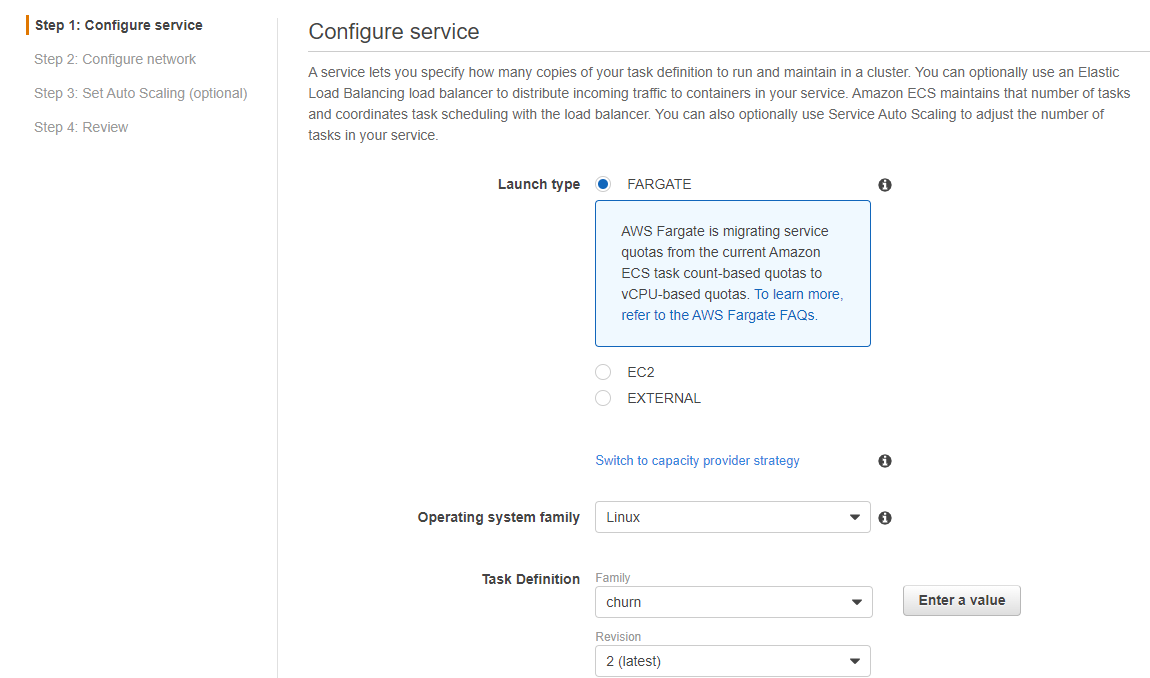

Configure service as shown in the figure below

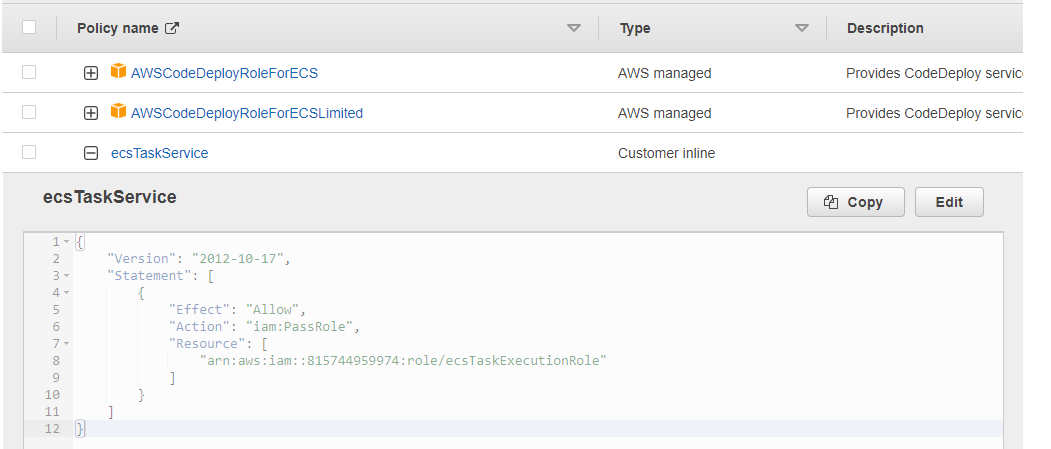

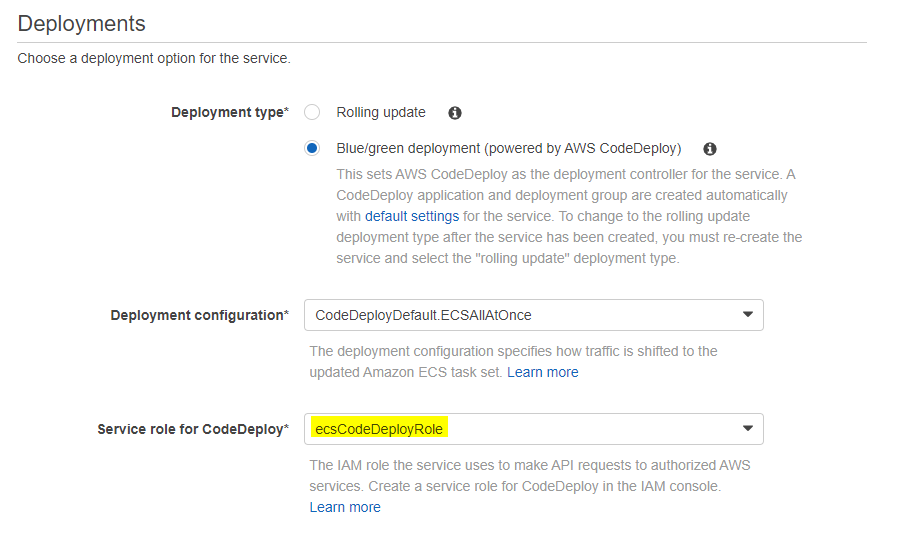

ecsCodeDeployRole details

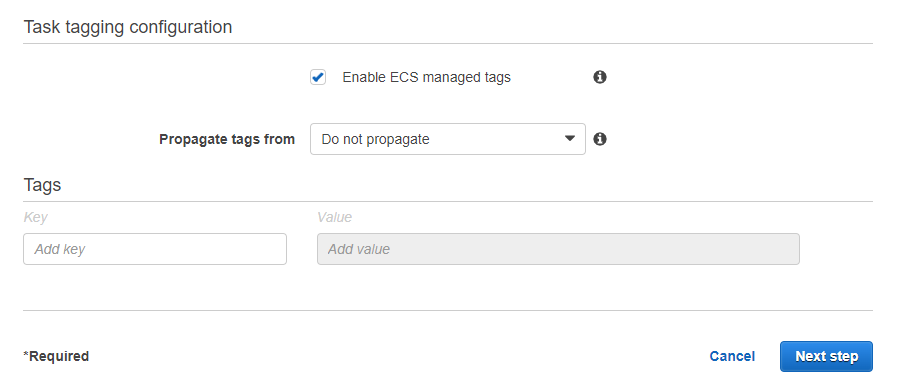

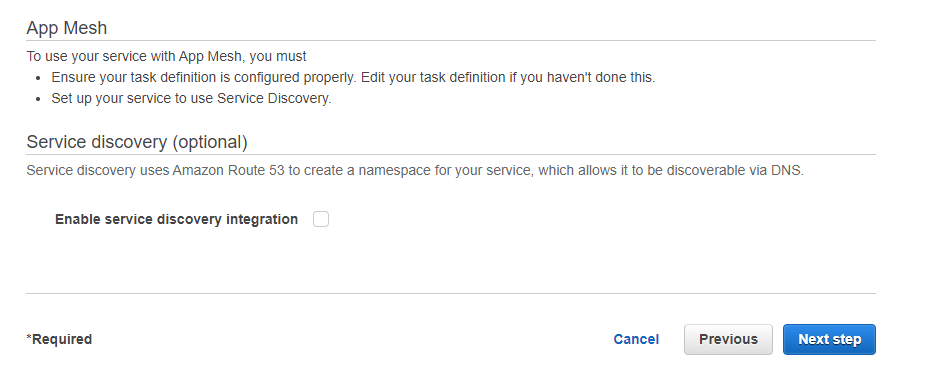

Click on next step

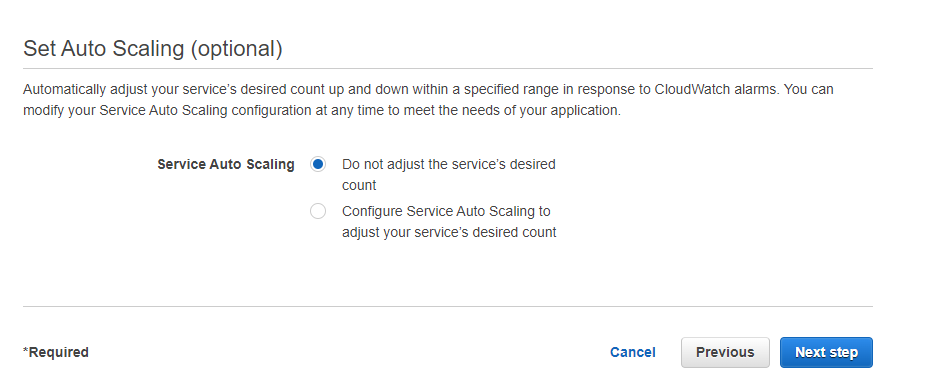

Click on next step

click on next step

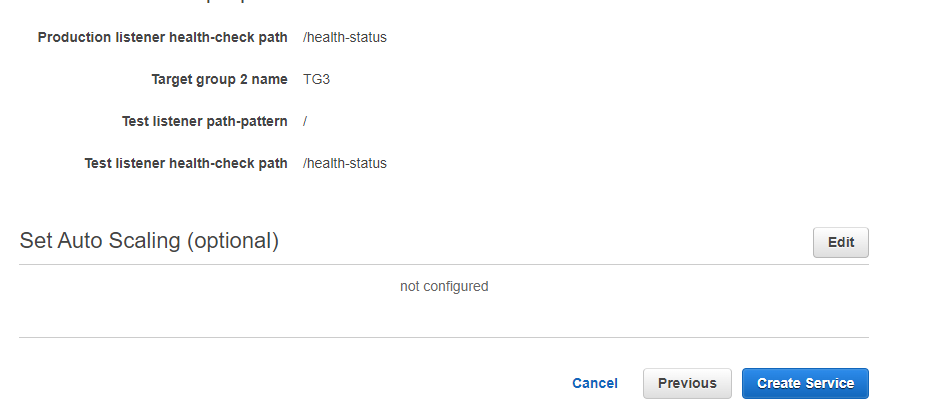

Review all the details and click on create Service

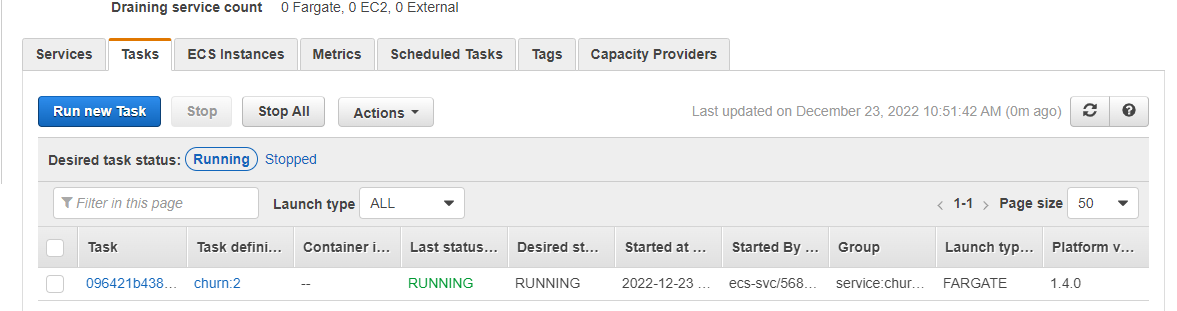

Under Tasks Tab we can see our task definition running

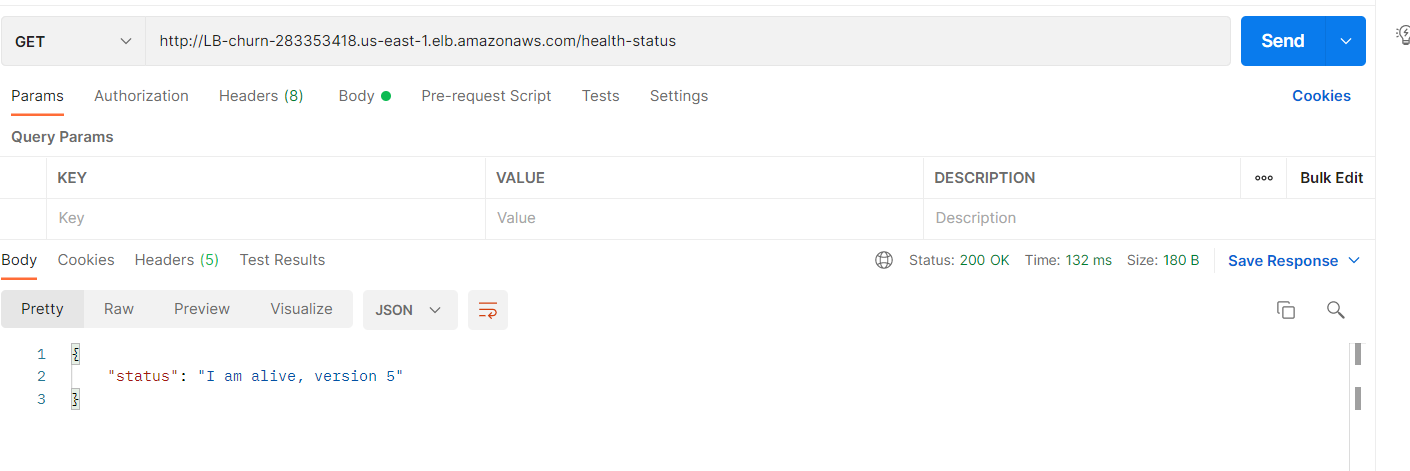

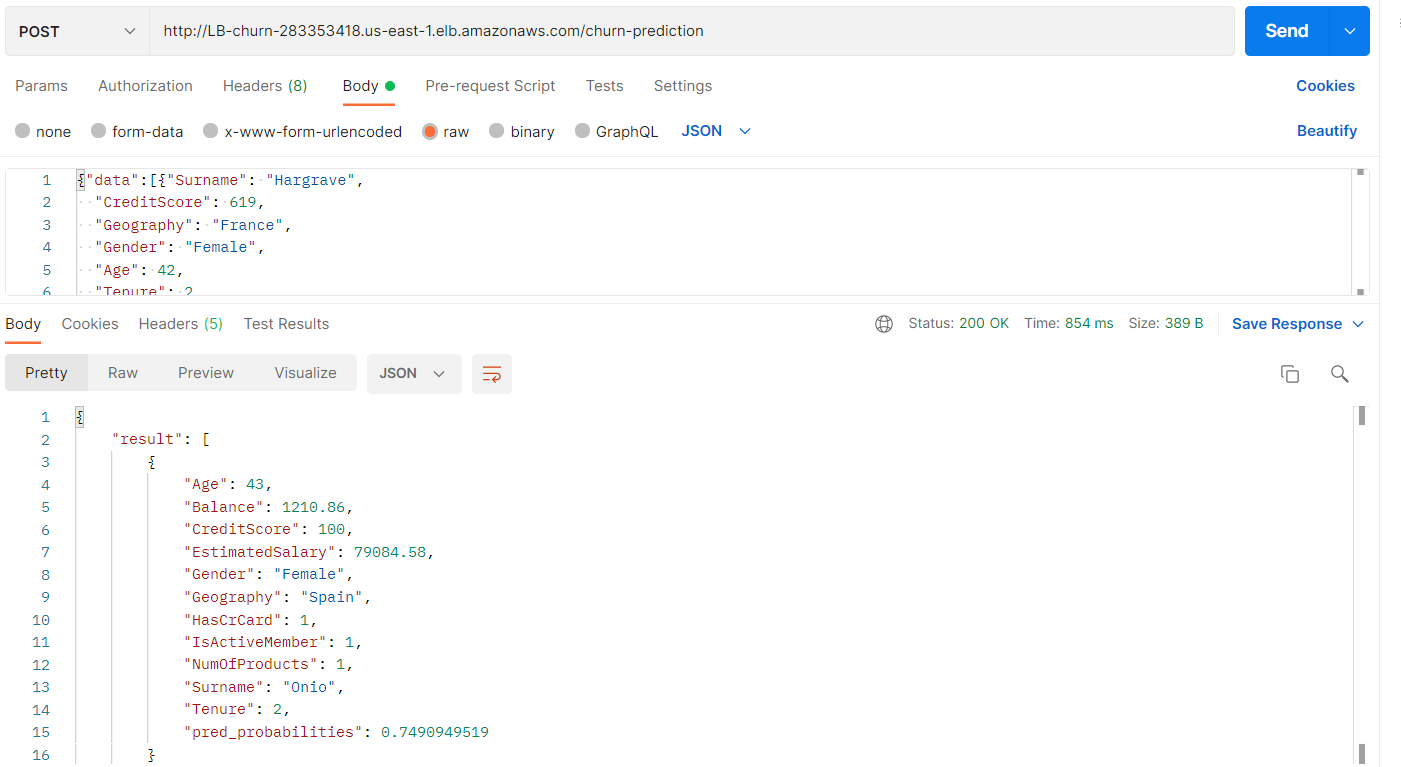

Using postman client check if the two routes are working or not – use the LB DNS name

9. Code deploy service

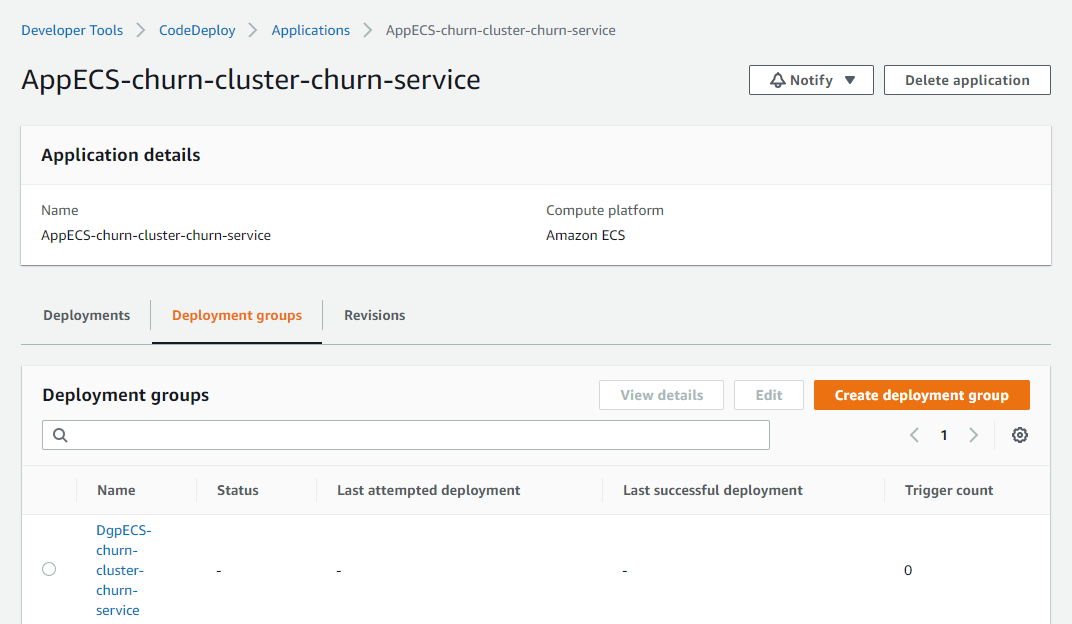

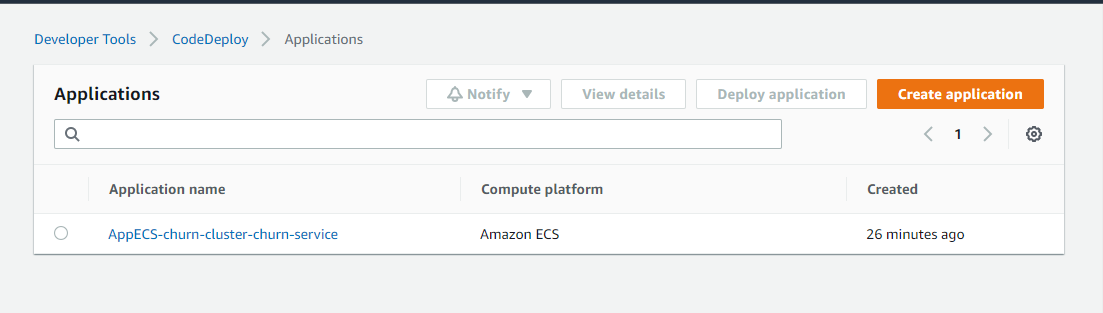

Go to aws console search code deploy service click on applications

Creating ecs service automatically creates an application for us in code deploy service

We can create multiple deployment groups

First, we will deploy the already created deployment group

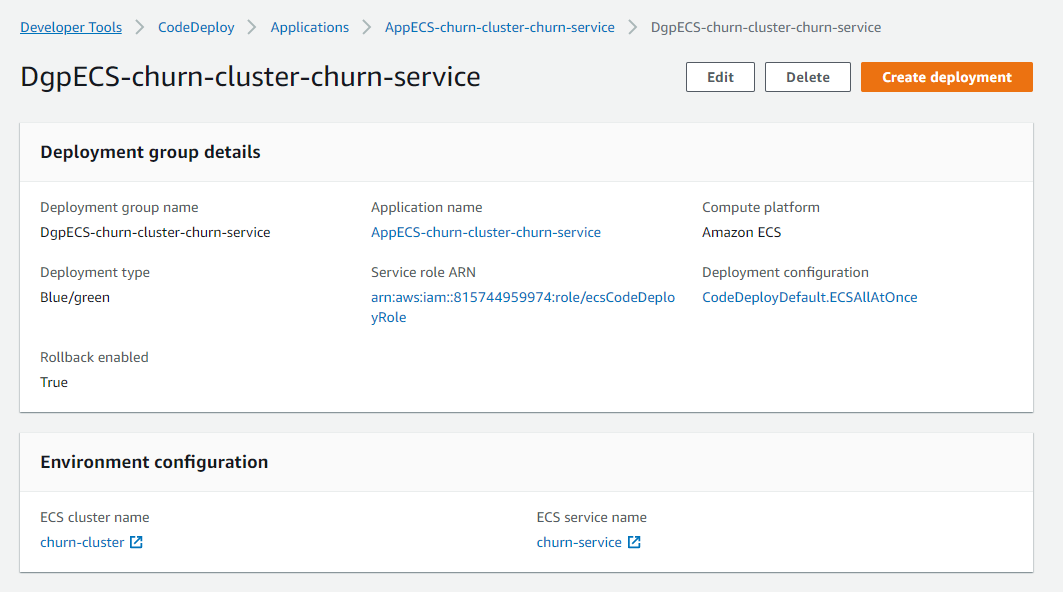

Click on the deployment group

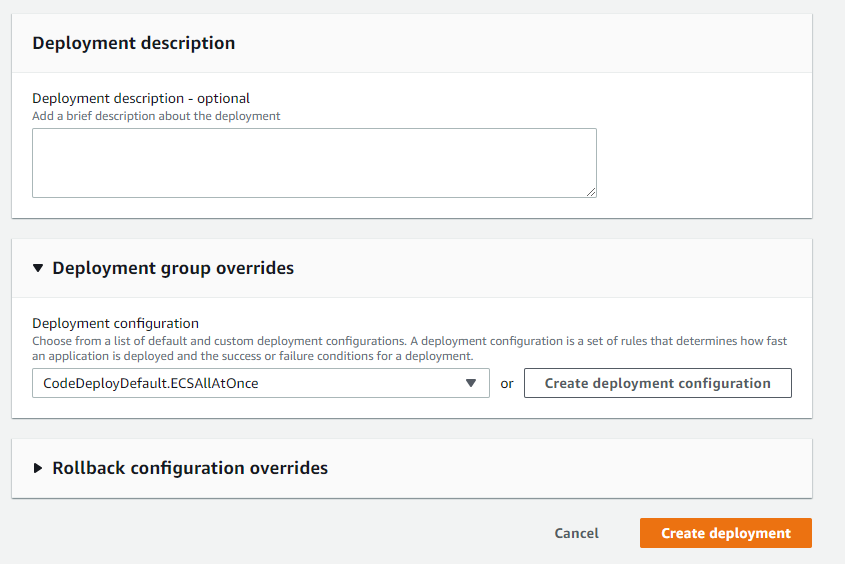

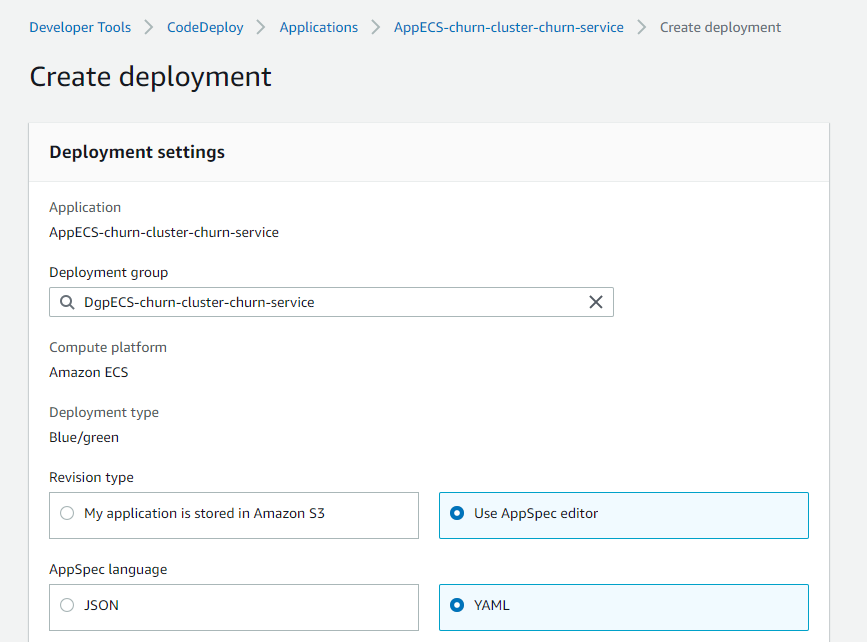

Click on create deployment

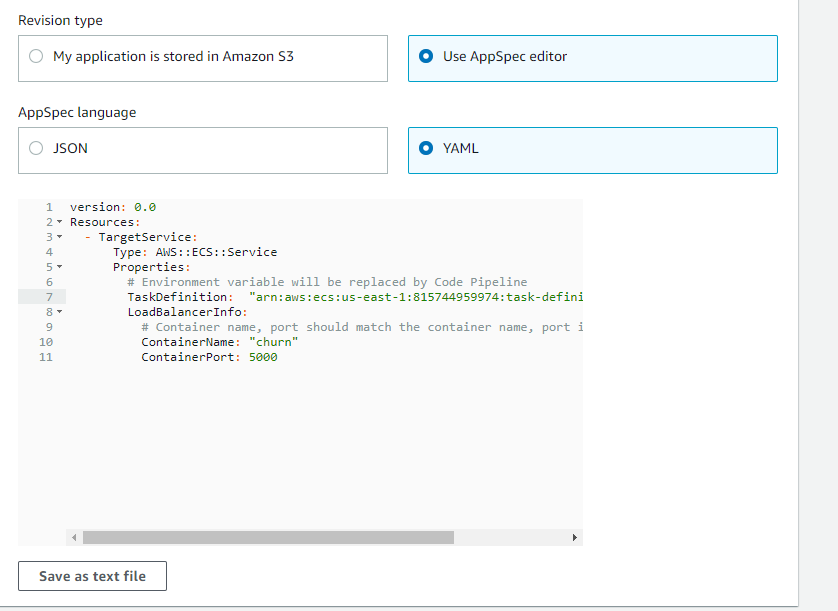

Appspec editor apspec yaml we need to provide the task definition details so that aws knows where to deploy the deployment groups

Find appspec.yaml https://github.com/AkashSDE/ChurnPrediction/blob/main/appspec.yaml

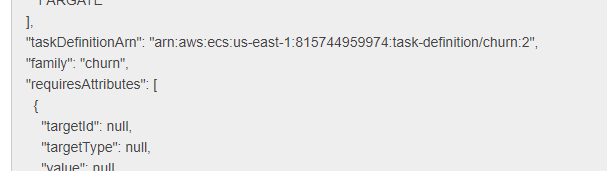

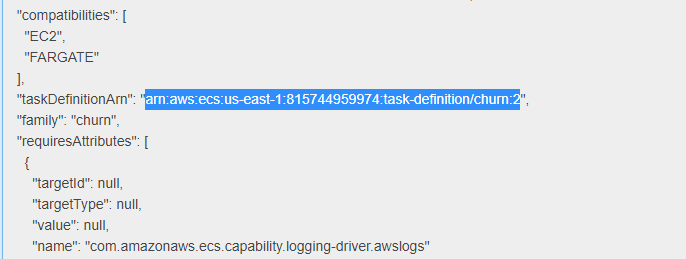

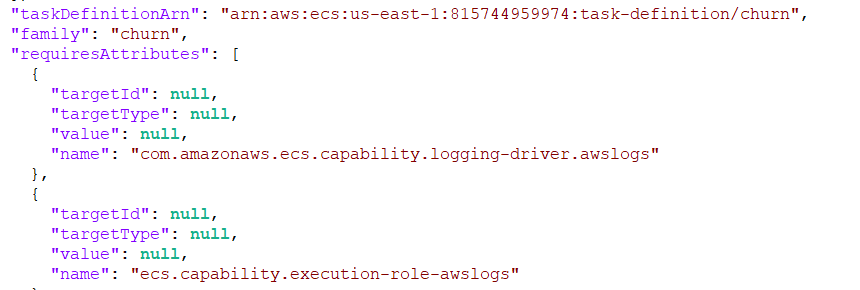

Copy the task definition arn from the json details of task definition

Click on create deployment

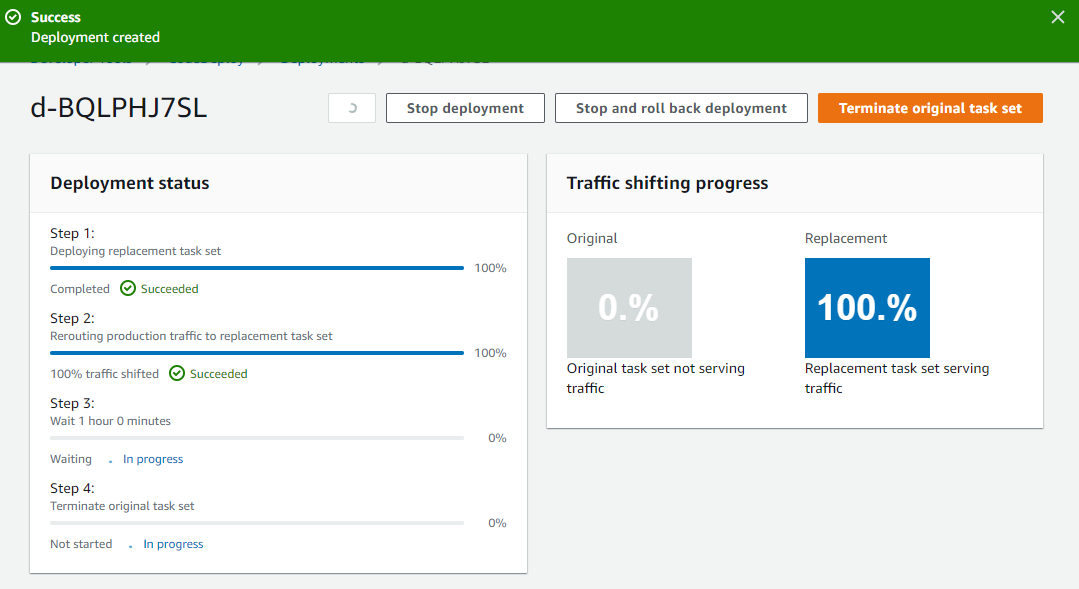

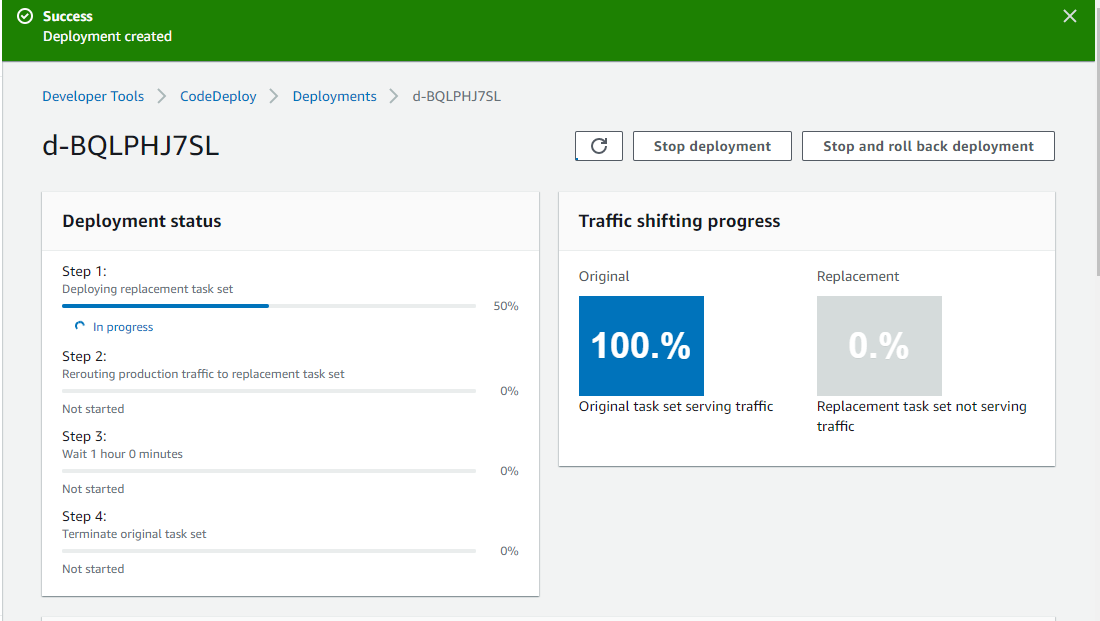

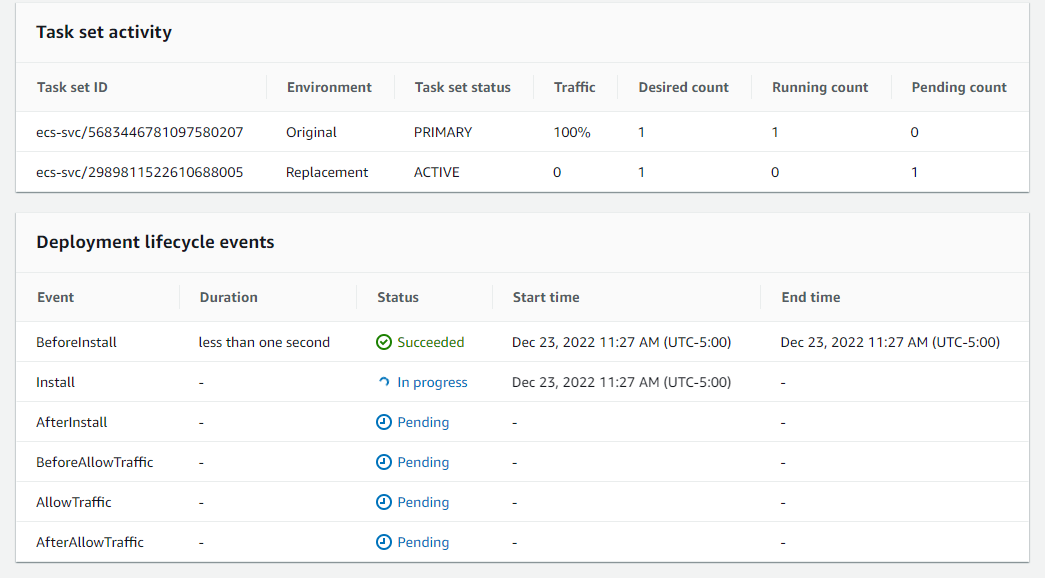

We will see the deployment status

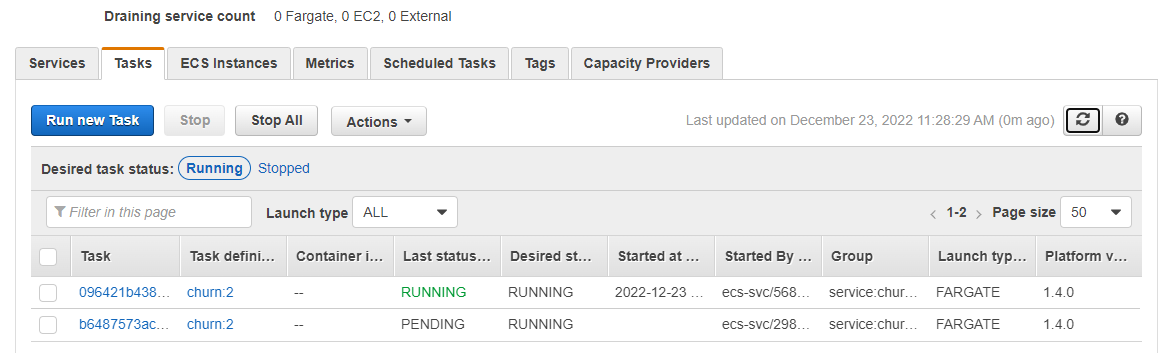

In the ecs task we can see the two task once the new task comes up other task will go down

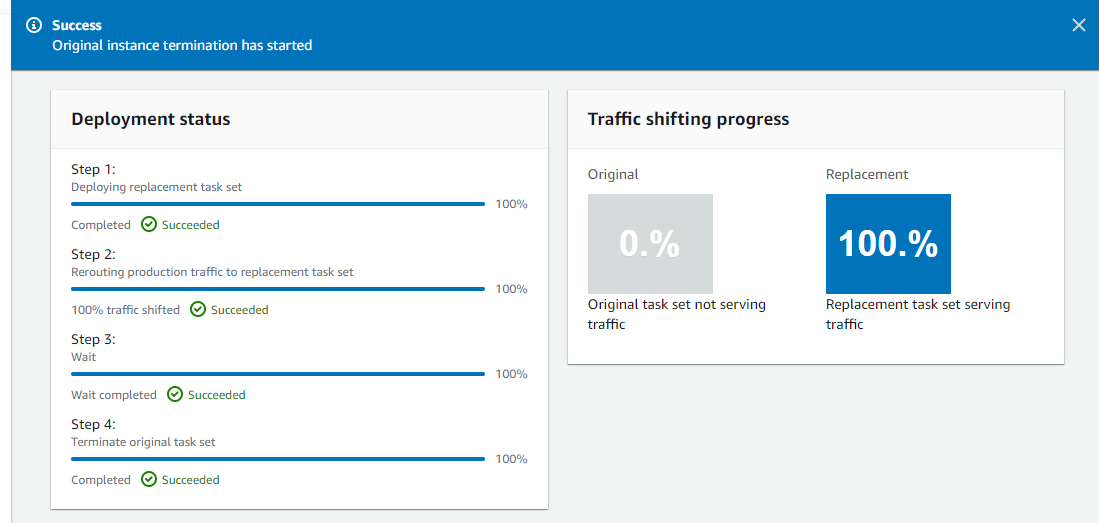

Once the replacement is 100% ready, we can click the terminate original task set

10. Code Pipeline

Now we will create code pipeline so for every commit the code pipeline gets triggered and new version of application is deployed.

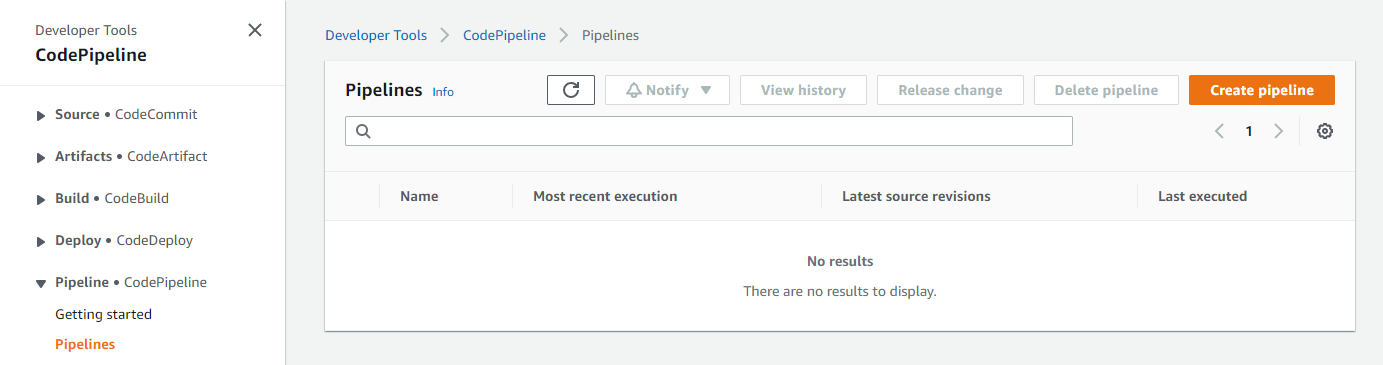

Open code pipeline service from aws console

First create the taskdef.json file and commit it in the code repo

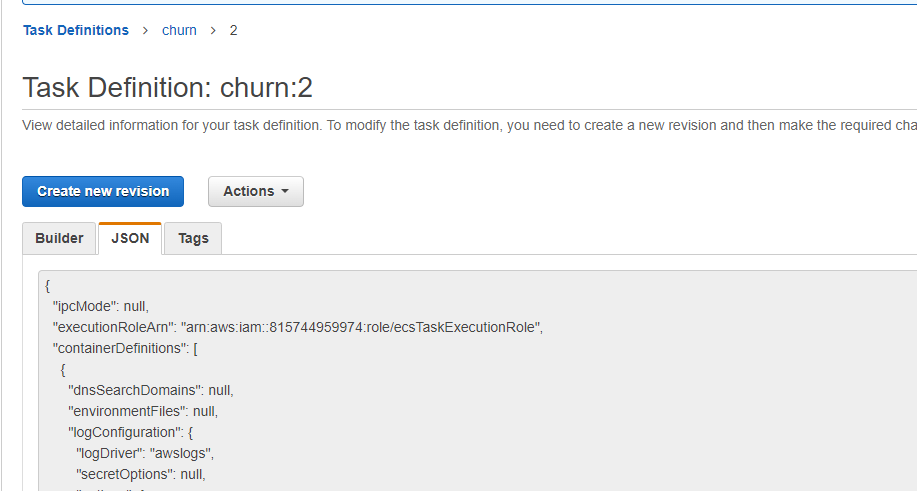

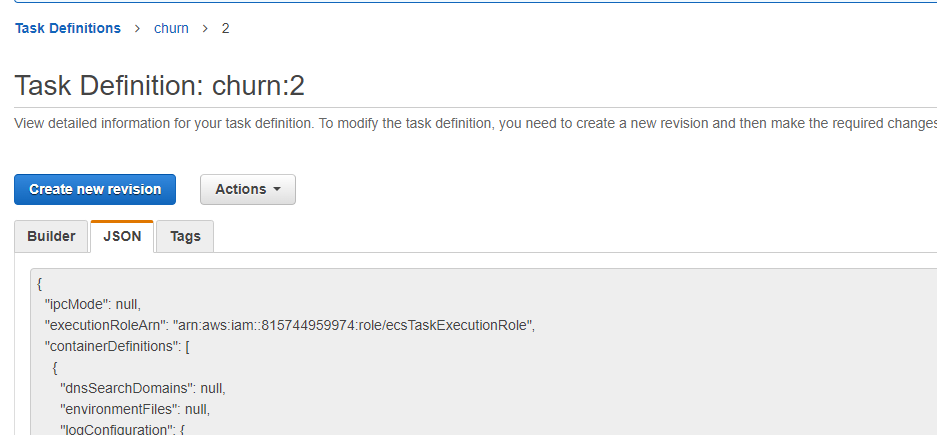

Copy the task definition details from the json tab and paste it in taskdef.json file

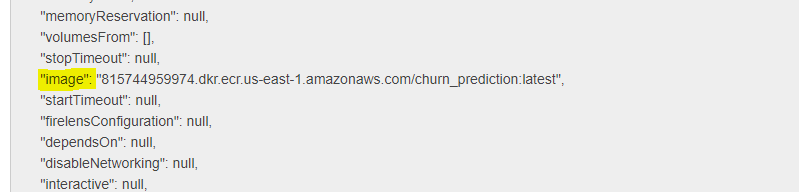

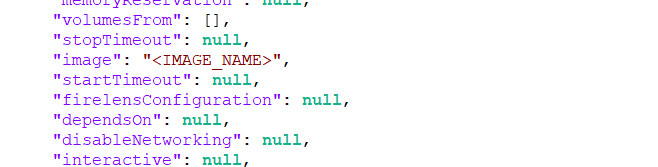

Replace the image name with <IMAGE_NAME> tag

Remove the version from the task definition Arn

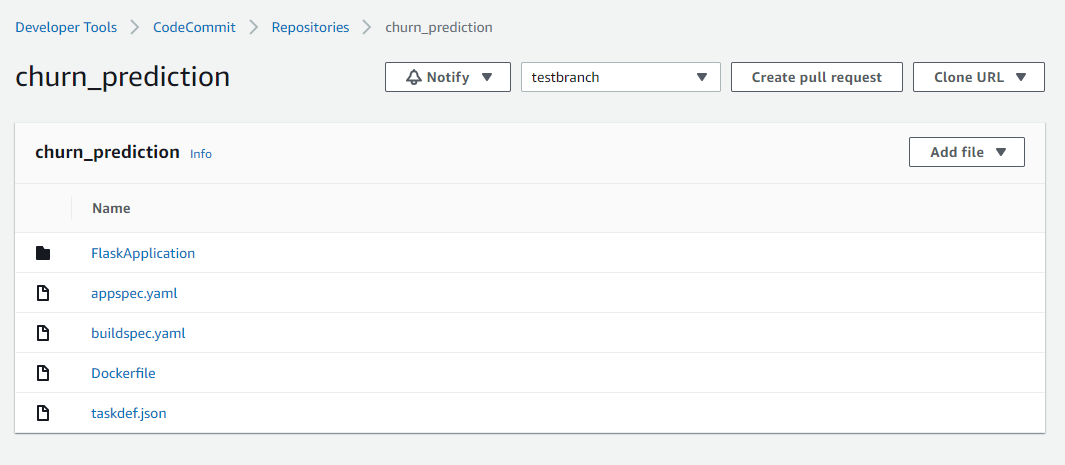

Do the above changes and push the taskdef.json in the aws code repository

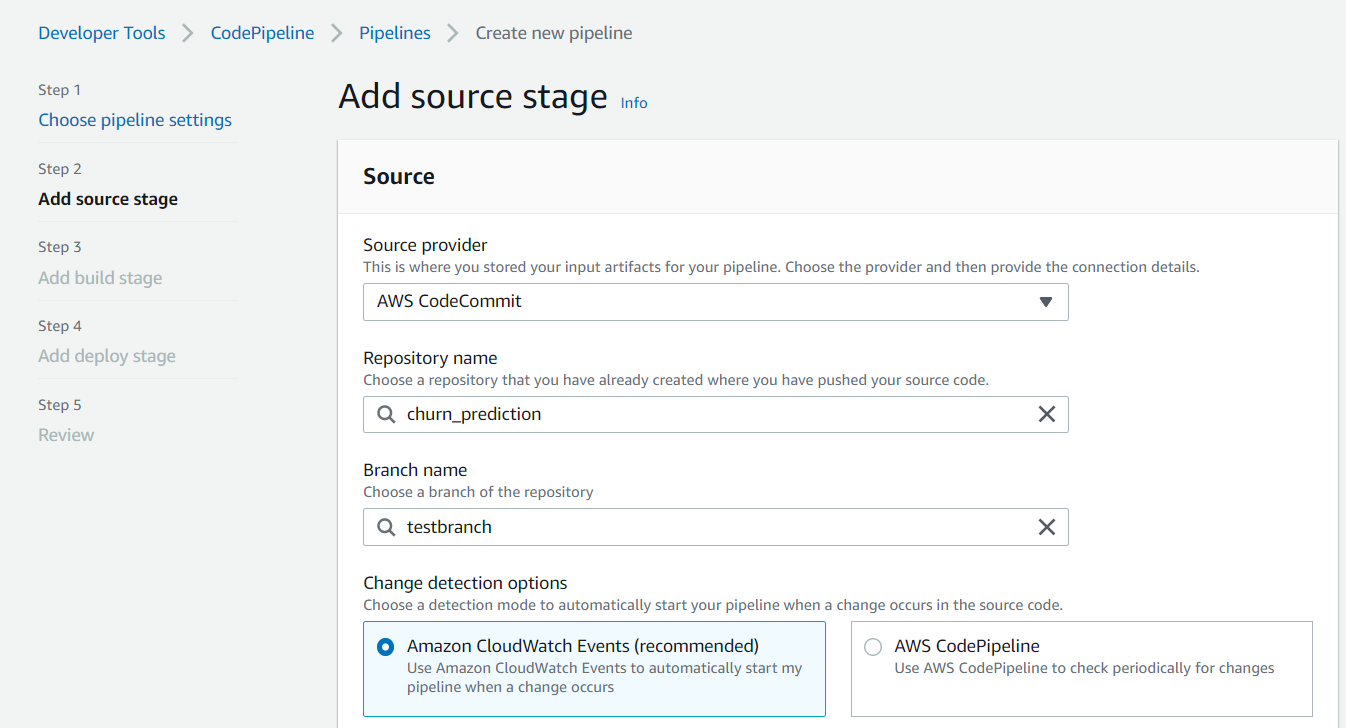

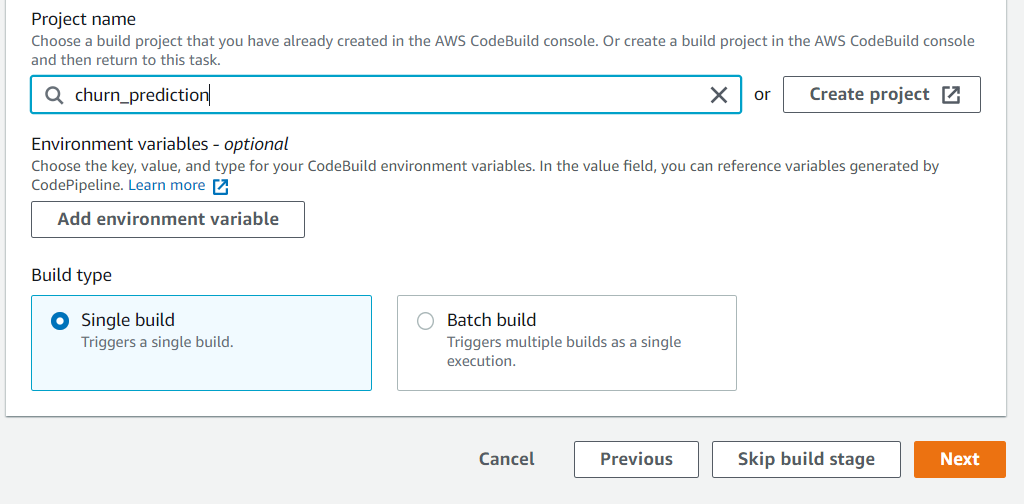

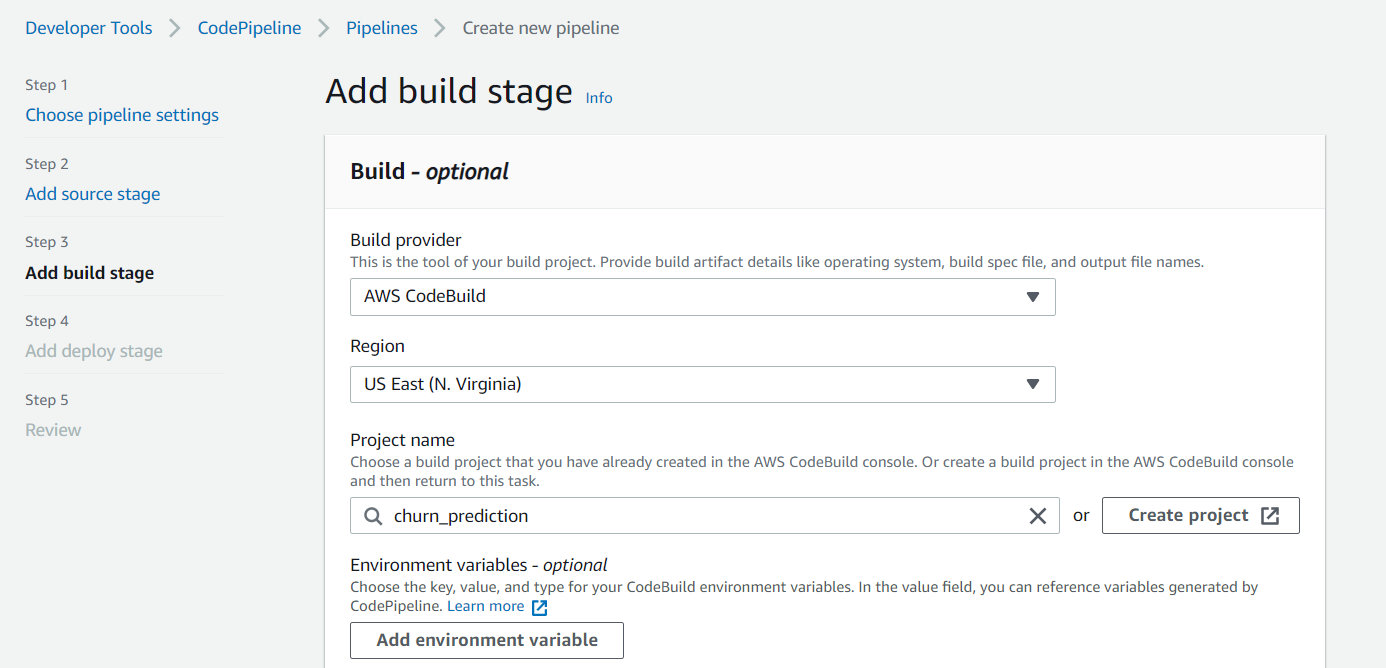

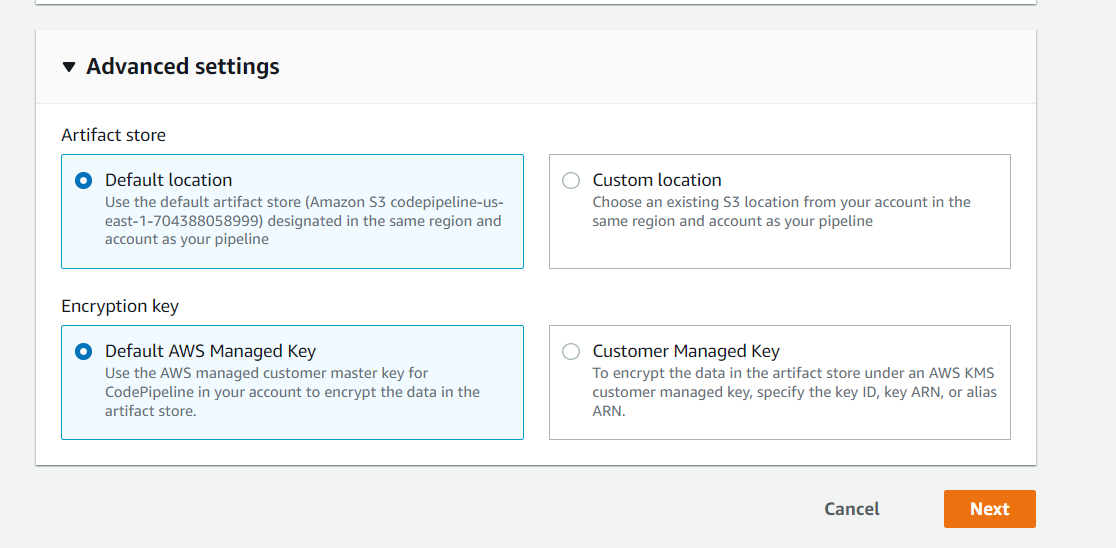

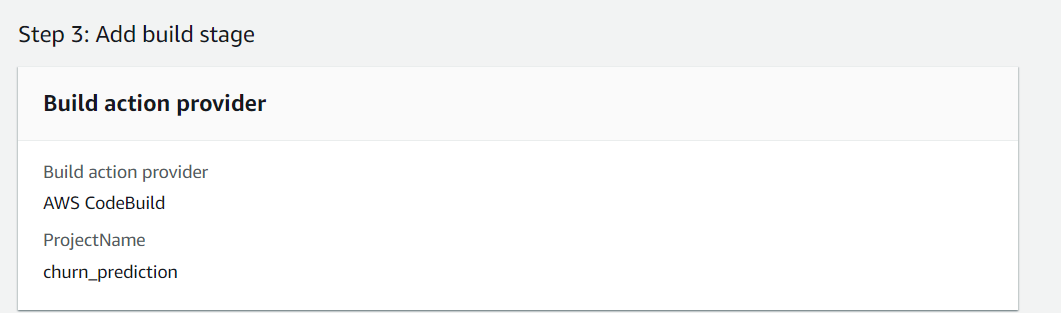

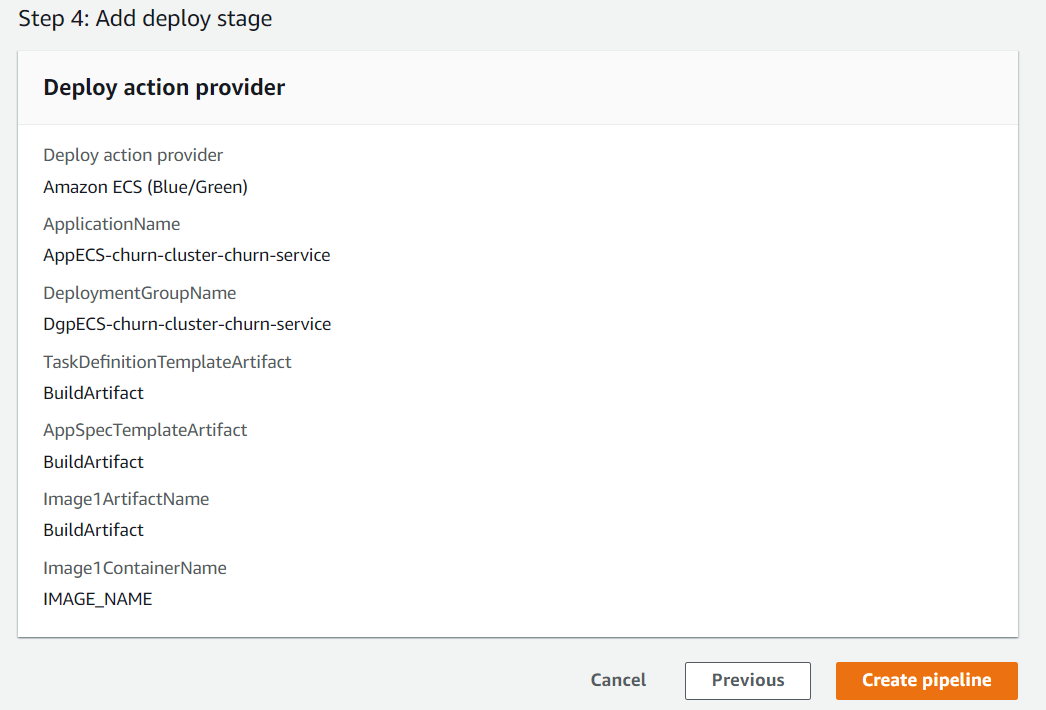

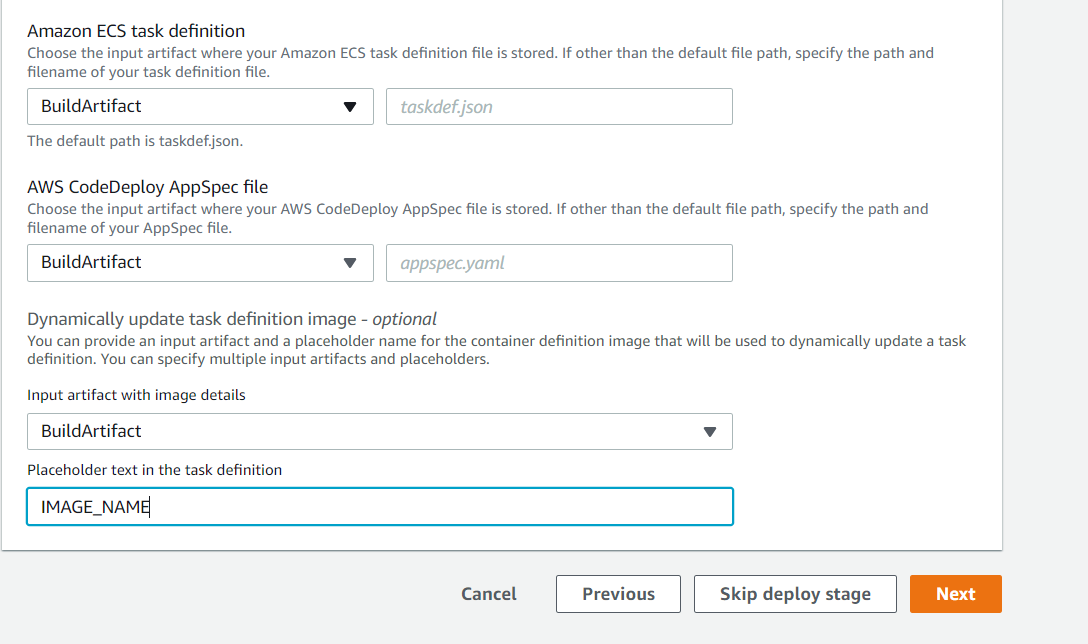

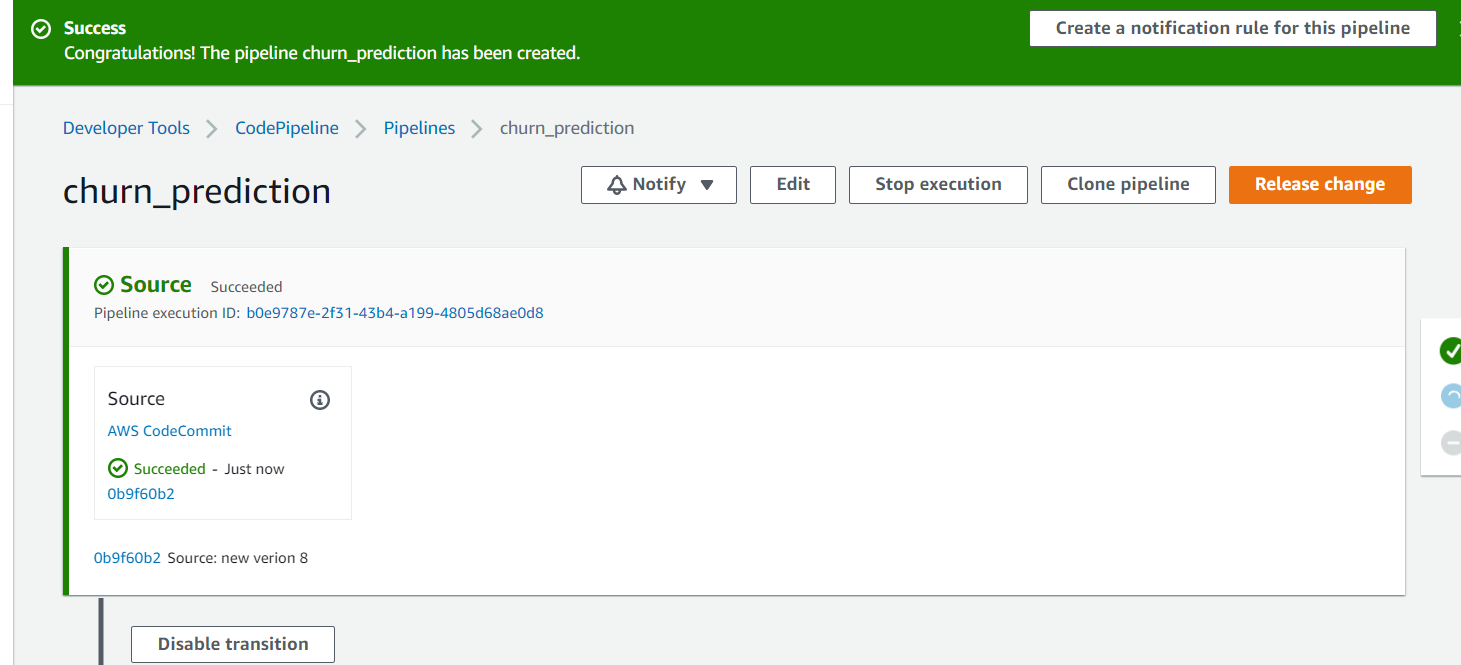

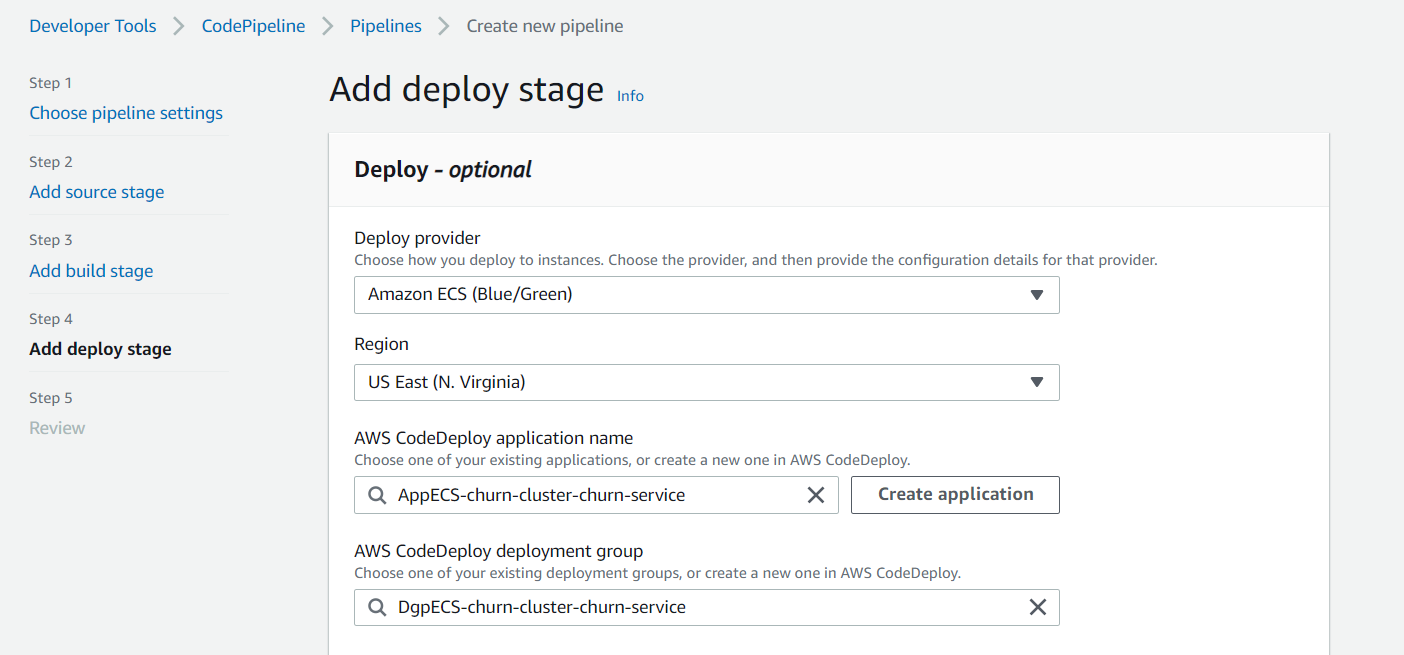

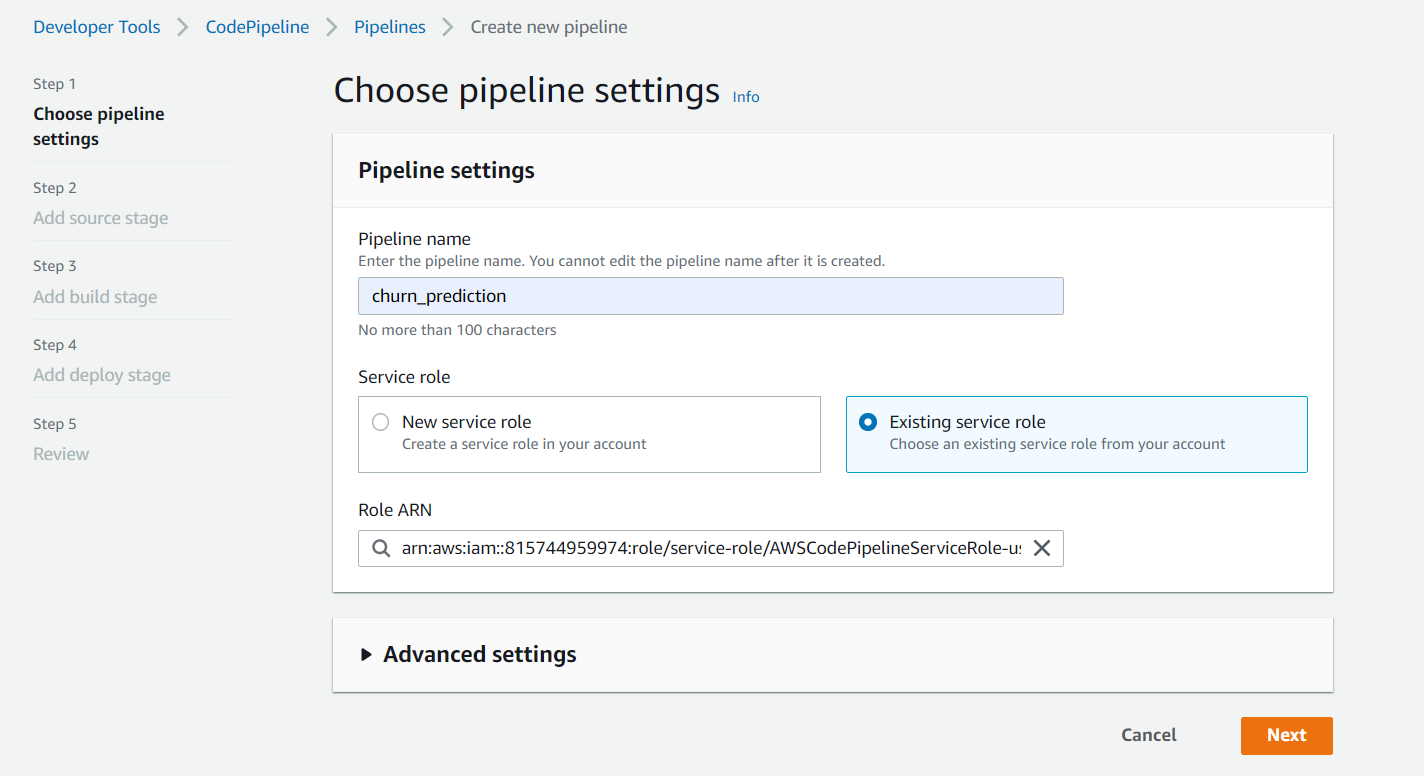

Click on create pipeline

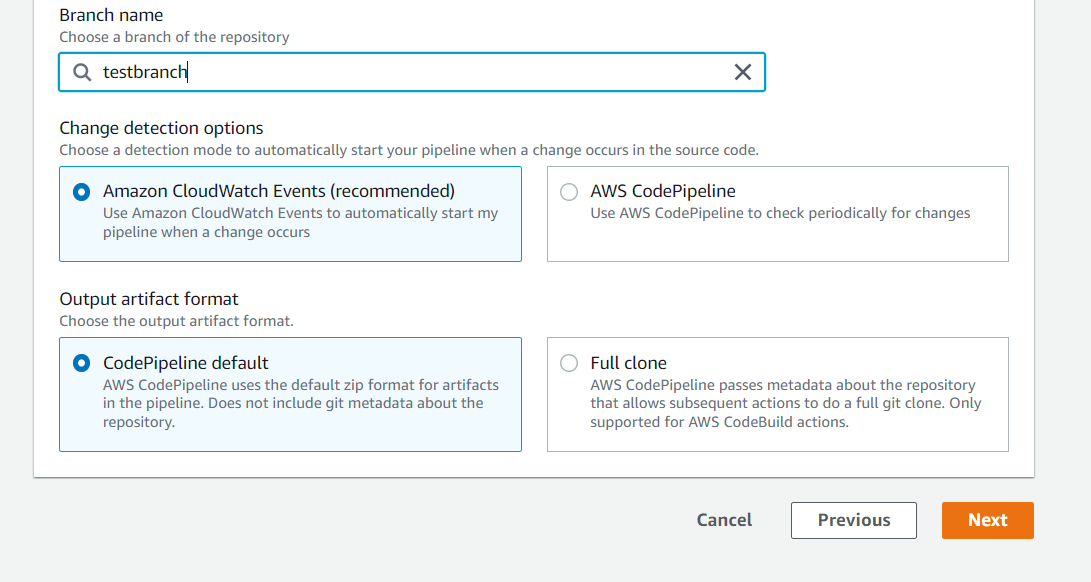

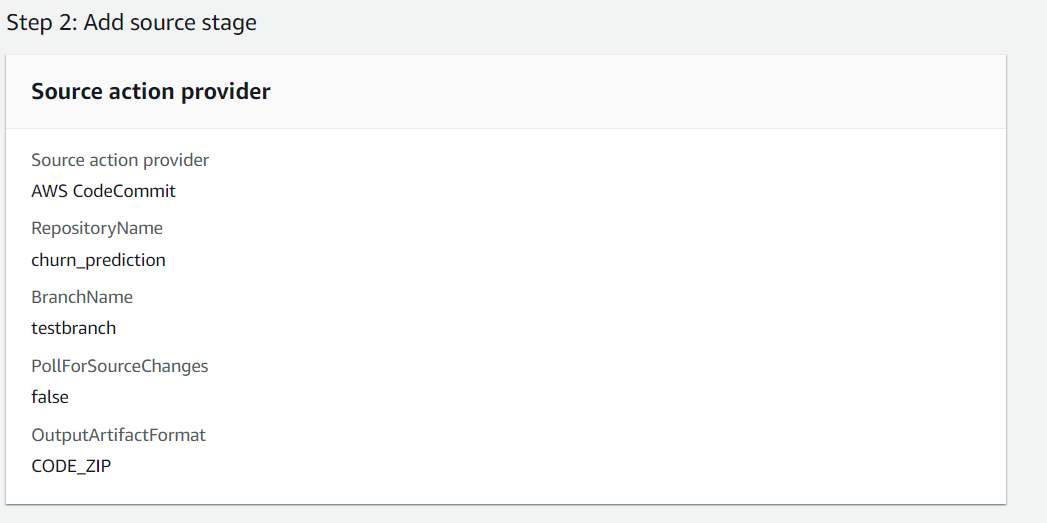

Click next

Click on next
